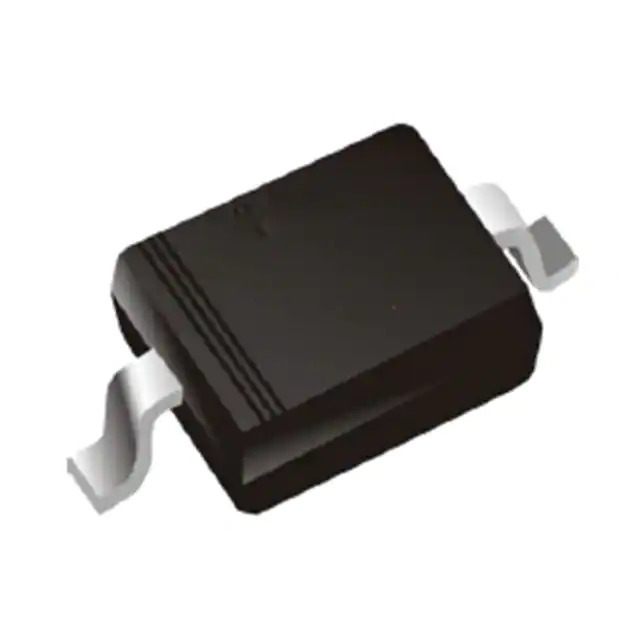

Same model may have multiple batches, images only for reference.
ESD3Z5V0BU MDD
Same model may have multiple batches, images only for reference.

ESD3Z5V0BU

Part No ESD3Z5V0BU
Manufacturer MDD
Catalog TVS - Diodes
Description TVS DIODE 5VWM 13VC SOD323 / Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount SOD-323
Datasheet
ESD3Z5V0BU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr MDD
Series SOD-323
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5V (Max)
Voltage - Breakdown (Min) 6V
Current - Peak Pulse (10/1000µs) 1A (8/20µs)
Power - Peak Pulse 100W
Power Line Protection Yes
Applications General Purpose
Capacitance @ Frequency 0.4pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case SOD-323
Supplier Device Package SOD-323
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1362354-ESD3Z5V0BU
Ultra Librarian 3D Model Ultra Librarian ESD3Z5V0BU CAD Model

Description

The 1362354-ESD3Z5V0BU is a Zener type TVS diode in a SOD-323 package.

  • Voltage Reverse Standoff: 5V
  • Minimum Breakdown Voltage: 6V
  • Peak Pulse Current: 1A
  • Power Rating: 100W
  • Direction: Unidirectional
  • Capacitance: 0.4pF @ 1MHz
  • Mounting Type: Surface Mountable
  • Temperature Range: -55°C to 150°C
  • Series: SOD-323
  • Manufacturer: MDD
