Same model may have multiple batches, images only for reference.

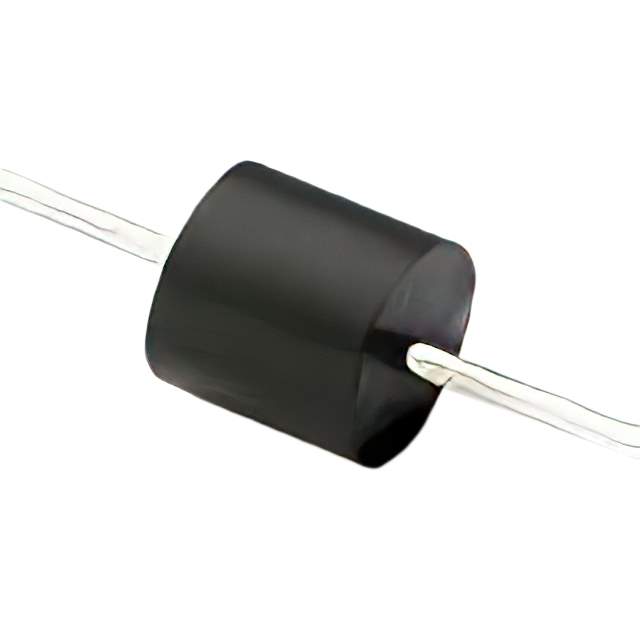

20KPA172A Real Image
Same model may have multiple batches, images only for reference.

20KPA172A

Part No 20KPA172A
Manufacturer MDE Semiconductor, Inc.
Catalog TVS - Diodes
Description TVS DIODE UP 172VRWM 277VC  /  277V Clamp 72.9A Ipp Tvs Diode Through Hole P600
Datasheet
20KPA172A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr MDE Semiconductor Inc
Series 20KPA
Package Bulk
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 172V
Voltage - Breakdown (Min) 192.1V
Voltage - Clamping (Max) @ Ipp 277V
Current - Peak Pulse (10/1000µs) 72.9A
Power - Peak Pulse 20000W (20kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case P600, Axial
Supplier Device Package P600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
Other Names 3811-20KPA172A
Standard Package 100
Win Source Part Number 1021007-20KPA172A
Ultra Librarian 3D Model Ultra Librarian 20KPA172A CAD Model

Description

The 20KPA172A is a TVS Diode with 172V Reverse Standoff Voltage and 192.1V Breakdown Voltage.

  • Type: TVS Diode
  • Reverse Standoff Voltage: 172V
  • Breakdown Voltage: 192.1V
  • Polarity: Unidirectional
  • Clamping Voltage: 277V @ 72.9A
  • Series: 20KPA
  • Application: General-Purpose
  • Package: P600 Axial
  • Peak Pulse Power: 20kW
  • Operating Temperature: -55°C to 175°C
  • Manufacturer: MDE Semiconductor Inc.
