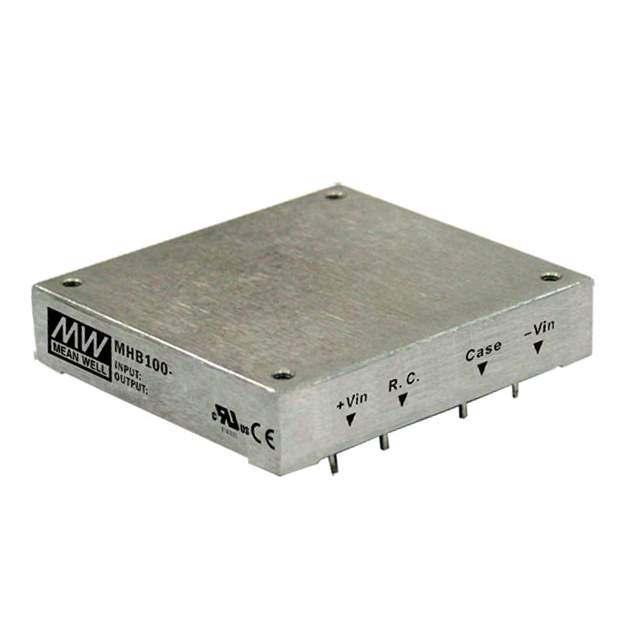

Same model may have multiple batches, images only for reference.

MHB100-24S24

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MHB100-24S24
Manufacturer	Mean Well Enterprises Co., Ltd.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 24V 100W / Isolated Module DC DC Converter 1 Output 24V 4.17A 18V - 36V Input
Datasheet	MHB100-24S24 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	MEAN WELL USA Inc.
Series	MHB100 (100W)
Package	Box
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	24V
Current - Output (Max)	4.17A
Power (Watts)	100 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 100°C
Efficiency	87%
Mounting Type	Through Hole
Package / Case	Half Brick
Dimension	2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Supplier Device Package	Half Brick
Base Product Number	MHB100
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	MHB100-24S24-ND,1866-3426
Standard Package	60
Win Source Part Number	991512-MHB100-24S24
Ultra Librarian 3D Model	Ultra Librarian MHB100-24S24 CAD Model

Alternative Products

Description

The MHB100-24S24 is a 100W isolated module DC-DC converter suitable for a wide range of applications such as ITE (Commercial).

Power: 100W
Application: ITE (Commercial)
Features: Remote on/off, OCP, OTP, OVP, SCP, UVLO
Voltage Isolation: 1.5 kV
Output Voltage: 24V
Maximum Output Current: 4.17A
Efficiency: 87%
Mounting Type: Through-hole
Package/Case: Half brick
Operating Temperature: -40°C to 100°C
Dimension: 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Standard Package: 60
