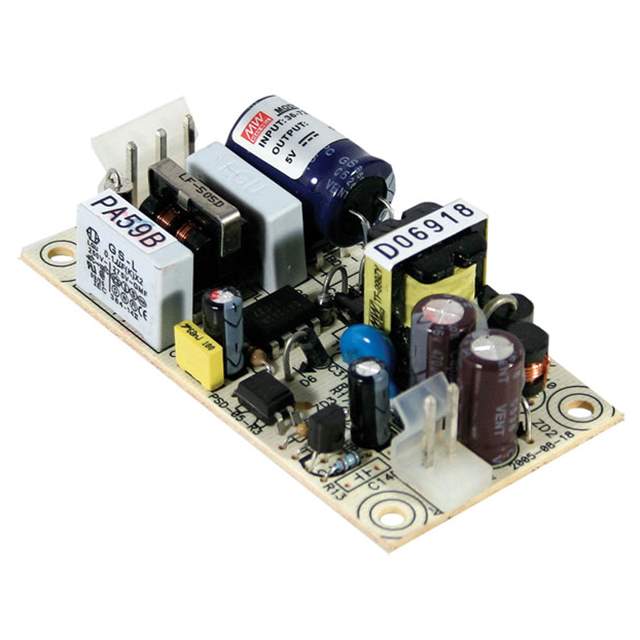

Same model may have multiple batches, images only for reference.

PSD-05-24

Name: PSD-05-24
Brand: Mean Well Enterprises Co., Ltd.
SKU: 1086098
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PSD-05-24
Manufacturer	Mean Well Enterprises Co., Ltd.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC/DC CONVERTER 24V 5.3W / Open Frame DC DC Converter 1 Output 24V 220mA 72V Input
Datasheet	PSD-05-24 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - External/Internal (Off-Board)>DC DC Converters
Mfr	MEAN WELL USA Inc.
Series	PSD-05 (5W)
Package	Box
Product Status	Obsolete
Type	Open Frame
Voltage - Input (Min)	36V
Voltage - Input (Max)	72V
Number of Outputs	1
Voltage - Output 1	24V
Current - Output (Max)	220mA
Power (Watts)	5.3W
Voltage - Isolation	2 kV
Applications	ITE (Commercial)
Efficiency	78%
Temperature Range - Operating	-10°C ~ 60°C (With Derating)
Mounting Type	Chassis Mount
Dimension	2.95" L x 1.57" W x 0.79" H (75.0mm x 40.0mm x 20.0mm)
Approval Agency	CE
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Standard Package	1
Win Source Part Number	1086098-PSD-05-24
Ultra Librarian 3D Model	Ultra Librarian PSD-05-24 CAD Model

Alternative Products

Description

The PSD-05-24 is an external/internal DC-DC converter that is designed for use in various electronic devices.

Supply and demand status: Unknown
Manufacturer: MEAN WELL USA Inc.
Win Source Part Number: 1086098-PSD-05-24
Power Output: 5.3W
Efficiency: 78%
Voltage Isolation: 2 kV
Current Output: 220mA
Input Voltage: 36V to 72V
Output Voltage: 24V
