Same model may have multiple batches, images only for reference.

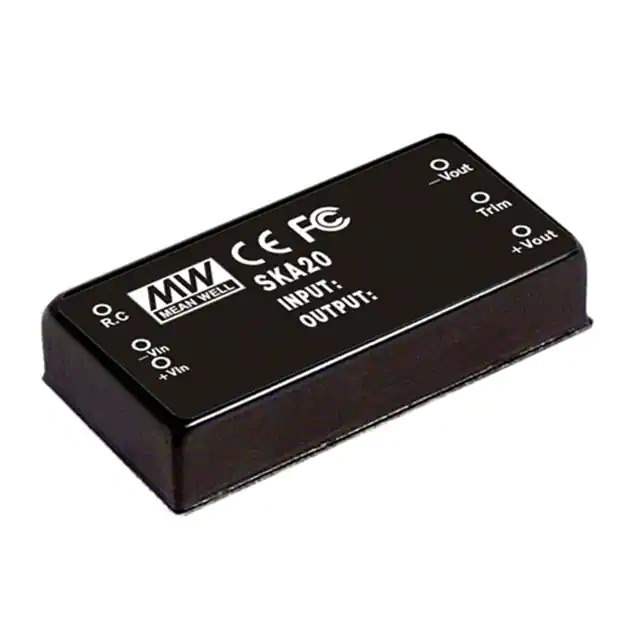

SKA20C-05 Real Image
Same model may have multiple batches, images only for reference.

SKA20C-05

Part No SKA20C-05
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 20W / Isolated Module DC DC Converter 1 Output 5V 4A 36V - 72V Input
Datasheet
SKA20C-05 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mean Well Enterprises Co., Ltd.
Series SKA20 (20W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 72V
Voltage - Output 1 5V
Current - Output (Max) 4A
Power (Watts) 20 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 88.5%
Mounting Type Through Hole
Package / Case 6-DIP Module
Size / Dimension 2.00" L x 1.00" W x 0.44" H (50.8mm x 25.4mm x 11.2mm)
Base Product Number SKA20
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 847062-SKA20C-05
Ultra Librarian 3D Model Ultra Librarian SKA20C-05 CAD Model

Description

The SKA20C-05 is a 20W isolated DC/DC converter from Mean Well Enterprises Co., Ltd.

  • Series: SKA20
  • Size: 2.00" L x 1.00" W x 0.44" H
  • Input Voltage: 36V to 72V
  • Output Voltage: 5V
  • Maximum Output Current: 4A
  • Features: Remote On/Off, OCP, OVP, SCP
  • Efficiency: 88.5%
  • Voltage Isolation: 1.5kV
  • Operating Temperature: -40°C to 85°C
  • Applications: Commercial
  • Standard Package: 500 pieces
