Same model may have multiple batches, images only for reference.

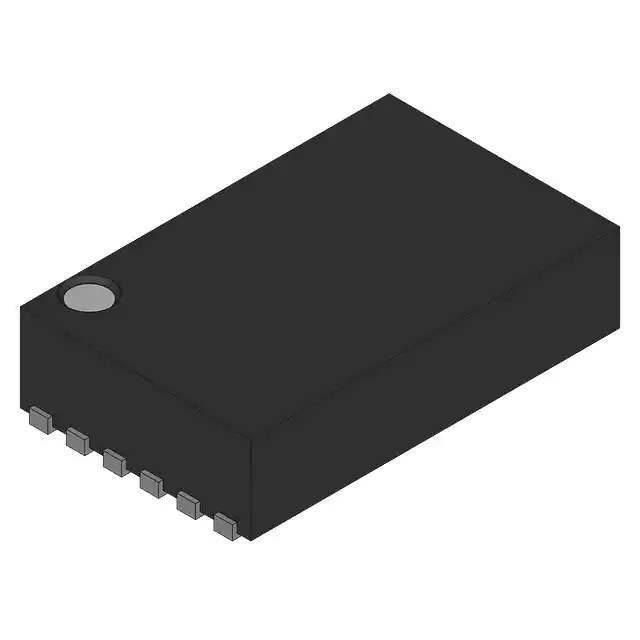

MIC4723YML Real Image
Same model may have multiple batches, images only for reference.

MIC4723YML

Part No MIC4723YML
Manufacturer Micrel
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators
Description 3 AMP 2MHZ INTEGRATED SWITCH BUC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - DC DC Switching Regulators
Mfr Micrel
Package Bulk
Product Status Active
Function Step-Down
Output Configuration Positive
Topology Buck
Output Type Adjustable
Number of Outputs 1
Voltage - Input (Min) 2.7V
Voltage - Input (Max) 5.5V
Voltage - Output (Min/Fixed) 1V
Voltage - Output (Max) 5.5V
Current - Output 3A
Frequency - Switching 2MHz
Synchronous Rectifier No
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case 12-VFDFN Exposed Pad, 12-MLF®
Supplier Device Package 12-MLF™ (3x3)
Base Product Number MIC4723
Standard Package 257 pcs
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 639907-MIC4723YML
Ultra Librarian 3D Model Ultra Librarian MIC4723YML CAD Model

Description

The MIC4723YML is a DC-DC switching regulator IC from Micrel. It is designed for power management applications, specifically for voltage regulation.

  • Package: housed in a 12-VFDFN exposed pad, 12-MLF package, making it suitable for surface mount applications.
  • Topology: step-down.
  • Output type: adjustable.
  • Maximum output voltage: 5.5V.
  • Current output: 3A.
  • Input voltage range: 2.7V to 5.5V.
  • Switching frequency: 2MHz.
  • Protection: over-temperature and over-current protection.
  • Operating temperature range: -40°C to 125°C.
  • Use: ideal choice for voltage regulation in various electronic devices.
