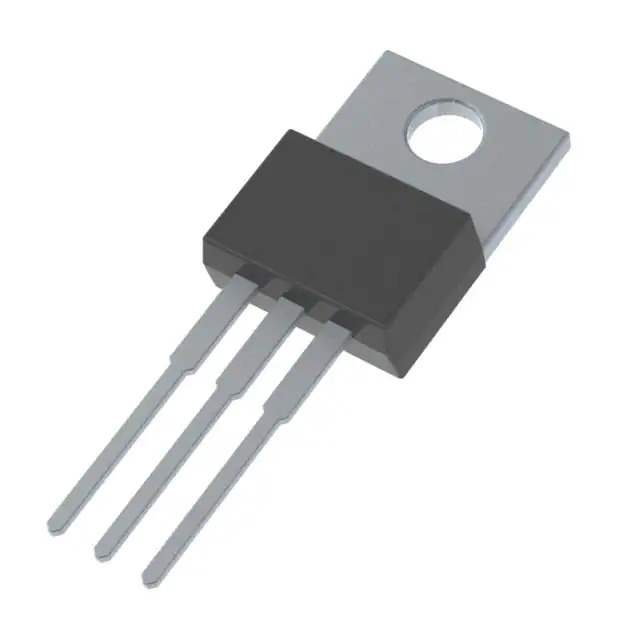

2SB857-D-BP Real Image
Same model may have multiple batches, images only for reference.

2SB857-D-BP

Part No 2SB857-D-BP
Manufacturer Micro Commercial Co
Catalog Transistors (BJT) - Single
Description TRANS PNP 50V 4A TO220AB
Datasheet
2SB857-D-BP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Single Bipolar Transistors
Mfr Micro Commercial Co
Package Bulk
Product Status Obsolete
Transistor Type PNP
Current - Collector (Ic) (Max) 4 A
Voltage - Collector Emitter Breakdown (Max) 50 V
Vce Saturation (Max) @ Ib, Ic 1V @ 2mA, 200mA
Current - Collector Cutoff (Max) 1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 160 @ 1A, 4V
Power - Max 2 W
Frequency - Transition 15MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-220-3
Supplier Device Package TO-220AB
Base Product Number 2SB857
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 855127-2SB857-D-BP
Ultra Librarian 3D Model Ultra Librarian 2SB857-D-BP CAD Model

Description

The 2SB857-D-BP is a PNP bipolar transistor designed for various electronic applications.

  • Category: Discrete semiconductor product
  • Series: Single bipolar transistors
  • Maximum Power Dissipation: 2W
  • Collector-Emitter Breakdown Voltage: 50V
  • Maximum Collector Current: 4A
  • Mounting Type: Through-hole
  • Package: TO-220-3
  • Vce Saturation: 1V @ 2mA base current and 200mA collector current
  • DC Current Gain: 160 @ 1A collector current and 4V collector-emitter voltage
  • Transition Frequency: 15MHz
  • Temperature Range: -55°C to 150°C
  • Manufacturer: Micro Commercial Co
  • Market Status: Obsolete
