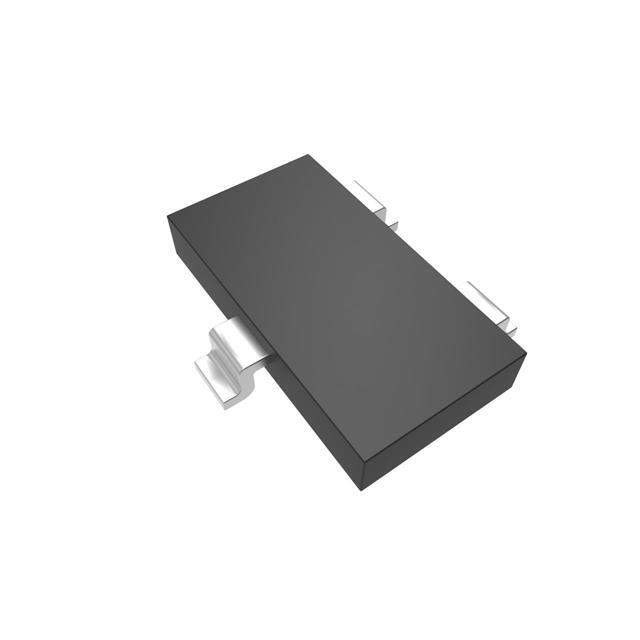

BAT54ST-TP Real Image
Same model may have multiple batches, images only for reference.

BAT54ST-TP

Part No BAT54ST-TP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 30V SOT523
Datasheet
BAT54ST-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Micro Commercial Co
Packaging Reel - TR
Status Active
Diode Configuration 1 Pair Series Connection
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) (per Diode) 200mA
Voltage - Forward (Vf) (Max) @ If 1V @ 100mA
Reverse Recovery Time (trr) 5ns
Current - Reverse Leakage @ Vr 2μA @ 25V
Operating Temperature - Junction -55°C to 125°C
Mounting SMD (SMT)
Case / Package SOT-523
Win Source Part Number 011004-BAT54ST-TP
Popularity Medium
Supply and Demand Status Limited
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian BAT54ST-TP CAD Model

Description

BAT54ST-TP Schottky Diode

The BAT54ST-TP Schottky diode is engineered for high-efficiency applications. Its low forward voltage provides optimal efficiency, while the small package profile supports modern, compact design requirements.

Features and Benefits:

  • Low forward voltage drop enhances energy efficiency
  • High-frequency operation suitable for modern electronics
  • Compact design reduces board space
  • Temperature reliability ensures consistent performance

Applications:

  • Reverse current protection
  • Rectification in AC/DC converters
  • Portable electronics
  • Gadget power supplies

Additional Details: The BAT54ST-TP is ideal for applications where high efficiency and compact design are pivotal. Its electromechanical characteristics make it suitable for high-performance electronic projects.
