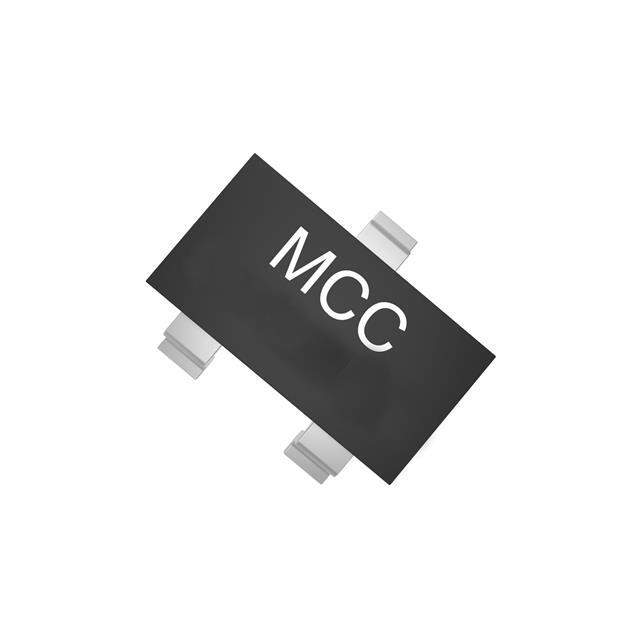

BAV199-TP Real Image
Same model may have multiple batches, images only for reference.

BAV199-TP

Part No BAV199-TP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 70V 215MA SOT23 / Diode Array 1 Pair Series Connection Standard 70 V 215mA (DC) Surface Mount TO-236-3, SC-59, SOT-23-3
Datasheet
BAV199-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Manufacturer Micro Commercial Co
Packaging Reel - TR
Diode Configuration 1 Pair Series Connection
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 70 V
Current - Average Rectified (Io) (per Diode) 215mA (DC)
Voltage - Forward (Vf) (Max) @ If 1.25 V @ 150 mA
Speed Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) 3 µs
Current - Reverse Leakage @ Vr 5 nA @ 75 V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Surface Mount
Case / Package TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23
Base Product Number BAV199
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Part Number BAV199MSCT,BAV199,Q8155911,BAV199-TPMSTR,BAV199-TPMSDKR,BAV199MSDKR-ND,BAV199TP,BAV199MSDKR,BAV199-TPMSCT,BAV199MSTR-ND,BAV199MSCT-ND,BAV199MSTR
Standard Package 3,000
Win Source Part Number 1325723-BAV199-TP
Ultra Librarian 3D Model Ultra Librarian BAV199-TP CAD Model

Description

The Micro Commercial Co BAV199-TP is a standard diode rectifier array designed for use in discrete semiconductor products.

  • Voltage - DC Reverse (Vr) (Max): 70 V
  • Voltage - Forward (Vf) (Max) @ If: 1.25 V @ 150 mA
  • Current - Average Rectified (Io) (per diode): 215mA (DC)
  • Reverse Recovery Time (trr): 3 μs
  • Current - Reverse Leakage @ Vr: 5 nA @ 75 V
  • Temperature Range: -55°C ~ 150°C
  • Package: Surface mount SOT-23 package
