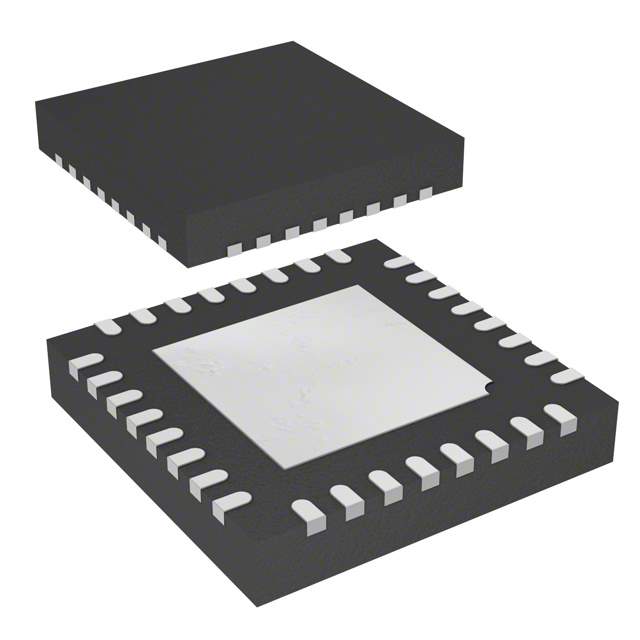

Microchip Technology AT90PWM1-16MU

The AT90PWM1-16MU is a high-performance, low-power AVR® 8-bit microcontroller from Microchip Technology, featuring advanced RISC architecture. This product is specifically designed to offer an efficient solution for motor control applications, particularly for those requiring Pulse Width Modulation (PWM) such as brushless DC motor control, AC induction motor control, and a variety of other applications that demand precise PWM signal generation.

Key Features

• Advanced RISC Architecture: With 32 x 8 general purpose working registers, the AT90PWM1-16MU operates at up to 16 MIPS throughput at 16MHz, ensuring a high level of performance for complex operations.
• High-Endurance Non-volatile Memory Segments: The device includes 8KB of in-system self-programmable flash, 512 Bytes EEPROM, and 512 Bytes SRAM, allowing for robust data storage and retention.
• Peripheral Features: It boasts a range of peripherals, including an 8-channel, 10-bit ADC, a programmable serial USART, and two flexible 16-bit timer/counters with compare modes and PWM.
• Dedicated Motor Control Features: The AT90PWM1-16MU offers features like Power Stage Controller with complementary PWM outputs, dead-time generation, and fault protection for advanced motor control.
• Power Efficiency: This microcontroller supports multiple power-saving modes, including Idle, ADC Noise Reduction, Power-save, Power-down, and Standby, which significantly reduce power consumption.
• Operating Conditions: It operates between 2.7-5.5V, across a temperature range of -40°C to 85°C, making it suitable for various environmental conditions.

Applications

The versatility of the AT90PWM1-16MU makes it ideal for a wide range of applications, especially those requiring accurate PWM for motor control. It is particularly well-suited for:

• Brushless DC motor control
• AC induction motor control
• Battery-operated tools
• Home appliances
• Automotive applications
• Industrial automation

Overall, the Microchip Technology AT90PWM1-16MU microcontroller is a powerful component that provides high efficiency, reliability, and precision for demanding motor control applications.
