Products specifications

Category Development Boards, Kits, Programmers>Evaluation and Demonstration Boards and Kits
Mfr Microchip Technology
Package Box
Type Power Management
Function Motor Controller/Driver
Embedded Yes, MCU, 8-Bit
Utilized IC / Part ATA6824
Primary Attributes Motors (DC)
Supplied Contents Board(s)
Base Product Number ATA6824
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8471.41.0150
Standard Package 1
Win Source Part Number 1181262-ATA6824-DK
Ultra Librarian 3D Model Ultra Librarian ATA6824-DK CAD Model

Description

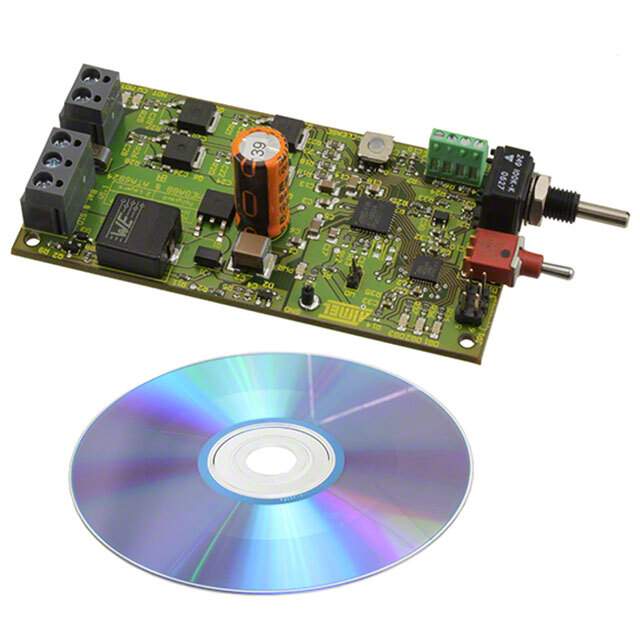

Microchip Technology's ATA6824-DK Development Kit

The ATA6824-DK from Microchip Technology is a comprehensive development kit designed to facilitate the evaluation and development of applications using the ATA6824 motor driver. This kit serves as an indispensable tool for engineers and developers looking to harness the full potential of Microchip's high-performance, H-bridge driver ICs in their automotive and industrial projects.

Key Features of the ATA6824-DK

  • ATA6824 H-Bridge Driver IC: At the heart of the development kit is the ATA6824 chip, which offers robust operation and protection features. It is ideal for driving DC motors in automotive environments, with capabilities such as PWM control and high-temperature performance.
  • Comprehensive Evaluation Board: The kit includes an evaluation board that provides easy access to all the features of the ATA6824. It includes connectors and jumpers for quick setup and testing, allowing for rapid prototyping and experimentation.
  • Software and Hardware Flexibility: The development kit is compatible with a range of software tools and comes with example code to jumpstart development. It also includes hardware interfaces for connecting to external systems and for easy integration into existing setups.
  • Detailed Documentation: Microchip provides extensive documentation with the ATA6824-DK, including datasheets, application notes, and user guides. This documentation ensures that developers have all the information they need to utilize the kit effectively.
  • Technical Support: Users of the ATA6824-DK benefit from Microchip's technical support services. Whether it's through forums, direct support, or online resources, help is readily available for any issues that may arise during development.

Applications

The ATA6824-DK is suited for a wide range of applications, particularly in the automotive sector, where reliable motor control is crucial. It's perfect for developing systems such as power windows, sunroofs, or seat adjusters. Additionally, its high-temperature operation makes it an excellent choice for industrial motor control applications that require robustness and precision.

With the ATA6824-DK, Microchip Technology provides developers with a versatile and powerful platform for creating advanced motor control solutions, ensuring efficient development and a faster time-to-market for their products.
