Microchip Technology ATF750LVC-15SU Overview

The ATF750LVC-15SU is a high-performance, programmable logic device (PLD) from Microchip Technology, designed to meet a wide array of application requirements. This device is part of the ATF750LVC series that offers the functionality of the industry-standard 22V10 PLD combined with the benefits of a low-voltage CMOS process. It is particularly suitable for battery-operated and power-sensitive applications due to its low power consumption.

Key Features

• High-Speed Performance: The ATF750LVC-15SU operates with a maximum propagation delay of 15ns, making it an excellent choice for high-speed logic operations.
• Low Power Consumption: This device is built using a 3.3V CMOS process, which significantly reduces power consumption, making it ideal for portable and power-critical designs.
• Reprogrammable: Users can reprogram the ATF750LVC-15SU multiple times, allowing for design iterations and updates without the need for hardware replacements.
• High-Density Design: With its 750 usable gates, the device offers a high level of integration, reducing the need for multiple components and saving board space.
• Flexible I/O: It provides 10 outputs with programmable polarity, allowing designers to easily adapt the device to their specific I/O requirements.
• Security Feature: To protect proprietary designs, the ATF750LVC-15SU includes a security fuse that, once programmed, prevents unauthorized access to the internal logic configuration.

Applications

The versatility of the ATF750LVC-15SU makes it suitable for a wide range of applications, including:

• Automotive systems
• Industrial controls
• Telecommunication infrastructure
• Consumer electronics
• Portable devices

Package Information

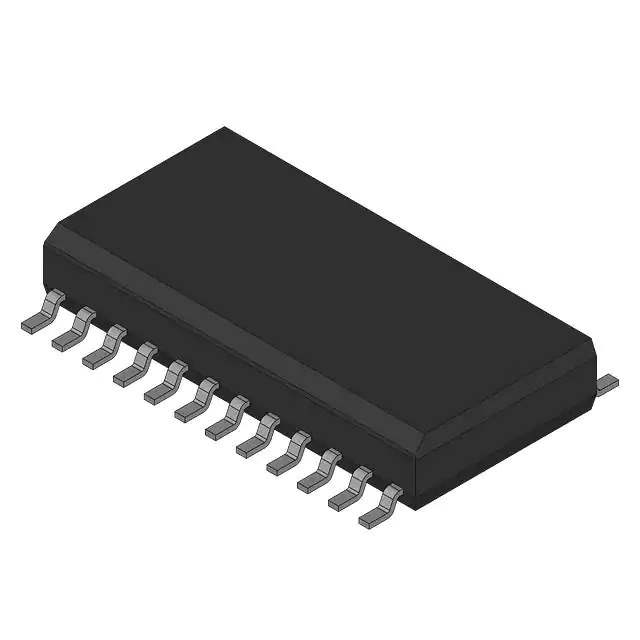

The ATF750LVC-15SU comes in a 24-lead SOIC package, which is designed for surface mounting on printed circuit boards. Its compact size and surface-mount package allow for efficient use of PCB space, which is crucial for modern, space-constrained electronic designs.

With its combination of speed, power efficiency, and programmability, the ATF750LVC-15SU from Microchip Technology is a robust solution for designers looking to optimize their digital logic designs.
