Microchip Technology's ATSAMD20E14A-AN Microcontroller

The ATSAMD20E14A-AN is a high-performance, low-power microcontroller from Microchip Technology, featuring a 32-bit ARM Cortex-M0+ processor. It is designed for a wide range of applications, from industrial control systems to consumer electronics. This versatile microcontroller combines efficiency with powerful features to enable sophisticated control and connectivity in your designs.

Key Features:

• Core: ARM Cortex-M0+ CPU running at up to 48MHz, offering a balance between power consumption and processing capability.
• Memory: Equipped with 16KB of in-system self-programmable Flash, 4KB of SRAM, and 2KB of EEPROM, providing ample storage for firmware and data.
• I/O Pins: Includes 32 programmable I/O lines that allow for flexible interfacing with different peripherals and devices.
• Communication Interfaces: Features multiple communication interfaces such as I2C, SPI, and USART, enabling easy data exchange with other components.
• Timers and PWM: Comes with multiple 16-bit timers, PWM channels, and a 32-bit Real-Time Counter (RTC), suitable for precise timekeeping and control tasks.
• Analog Features: Contains a 10-bit ADC with 12 channels and a 10-bit DAC, providing robust capabilities for analog signal processing.
• Supply Voltage: Operates within a 1.62V to 3.63V range, ensuring compatibility with various power sources and battery-operated applications.

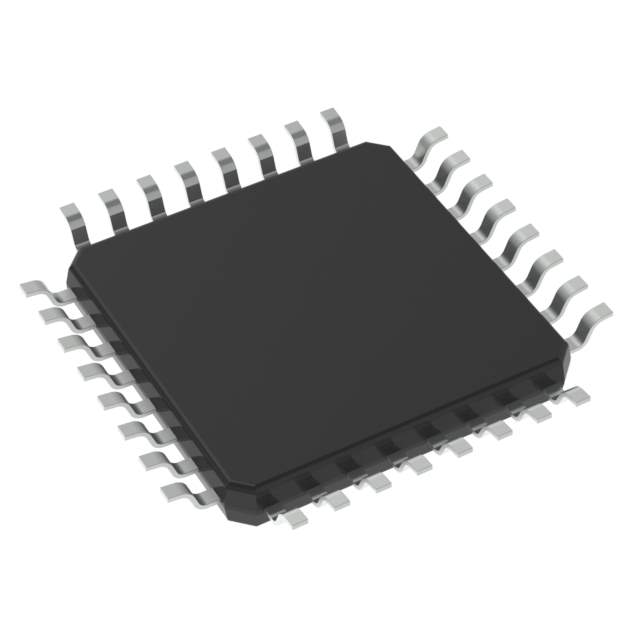

• Package: Available in a compact 32-pin TQFP package, ideal for space-constrained applications.

Applications:

The ATSAMD20E14A-AN is well-suited for a variety of applications, including:

• Smart home devices
• Internet of Things (IoT) sensors and controllers
• Battery-operated devices
• Industrial automation systems
• Wearable technology

With its combination of performance, power efficiency, and extensive feature set, the ATSAMD20E14A-AN microcontroller is an excellent choice for designers looking to create sophisticated and reliable products.
