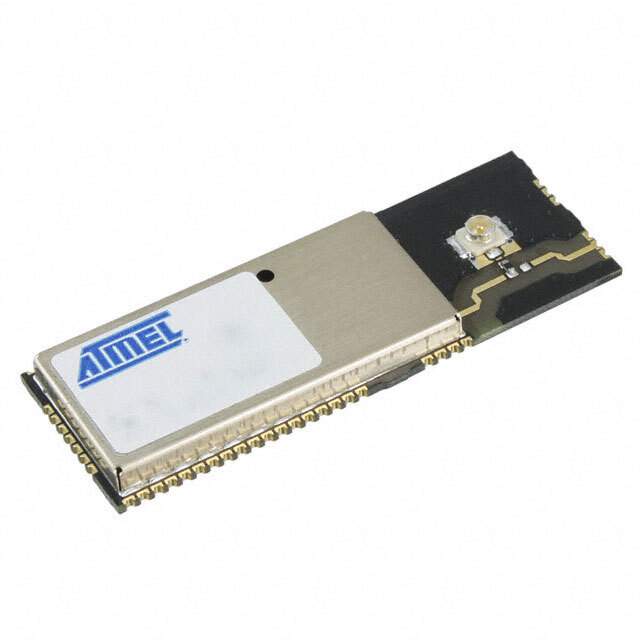

The ATZB-A24-UFLBR from Microchip Technology is a versatile and powerful RF module designed for wireless applications requiring low power consumption and high performance. This module is a part of the Atmel range of ZigBee/IEEE 802.15.4-compliant solutions, which are well-suited for the development of smart energy, home automation, and industrial control systems.

Key Features:

• Wireless Standard: The module operates on the ZigBee/IEEE 802.15.4 protocol, ensuring compatibility with other compliant devices and systems.
• Frequency Band: It uses the 2.4 GHz ISM frequency band, providing a good balance between range and data rate.
• Integrated Antenna: Equipped with a U.FL connector for an external antenna, the ATZB-A24-UFLBR offers flexible antenna options for different application needs.
• Low Power Consumption: Designed for energy efficiency, the module is ideal for battery-operated devices where power consumption is a critical factor.
• Compact Size: The small form factor of the module allows for easy integration into space-constrained applications.
• Easy to Integrate: The module comes with hardware support for the ZigBee PRO feature set, making it straightforward to integrate into existing networks.
• Robust Security: It features AES-128 encryption, providing secure communications for sensitive data transmission.

Applications:

The ATZB-A24-UFLBR is suitable for a wide range of applications, including:

• Smart Energy and Metering
• Home and Building Automation
• Wireless Sensor Networks
• Industrial Monitoring and Control
• Remote Control Systems

Technical Specifications:

• Supply Voltage: 1.8 - 3.6V
• Output Power: up to +3 dBm
• Sensitivity: -101 dBm
• Operating Temperature: -40°C to +85°C
• Dimensions: 24.5 x 30.5 x 3.2 mm

The ATZB-A24-UFLBR RF module by Microchip Technology offers a reliable and secure solution for developers looking to create or expand wireless capabilities in their products. With its ease of integration and robust feature set, it is an excellent choice for a multitude of wireless applications.
