Microchip Technology DSPIC30F2012-20E/ML Product Overview

The DSPIC30F2012-20E/ML from Microchip Technology is a high-performance 16-bit digital signal controller (DSC) that merges the benefits of microcontrollers (MCU) with the signal processing capabilities of digital signal processors (DSPs). This integration makes it an ideal choice for applications requiring complex, real-time calculations such as motor control, power supplies, and advanced sensors.

Key Features

• High-Speed CPU: The DSPIC30F2012-20E/ML operates at a speed of up to 20 MIPS (Million Instructions Per Second) with a 30 ns instruction cycle time, enabling rapid execution of complex algorithms.
• Program Memory: It comes with 12KB of on-chip flash memory, which provides ample space for application code and is reprogrammable for flexible development and updates.
• Data RAM: The device includes 512 bytes of data RAM, allowing for efficient handling of data-intensive tasks.
• I/O Ports: Equipped with 16 general-purpose I/O pins, this DSC facilitates versatile interfacing with a wide range of peripherals and sensors.
• Robust Peripheral Set: A comprehensive set of peripherals, including an I2C module, UART, SPI, and PWM outputs, supports diverse communication protocols and control applications.
• On-chip Analog Features: The DSC integrates a 10-bit analog-to-digital converter (ADC) with up to four channels, enabling precise data acquisition from analog sources.
• Power Management: Its power management modes help in reducing power consumption for battery-powered and energy-conscious applications.

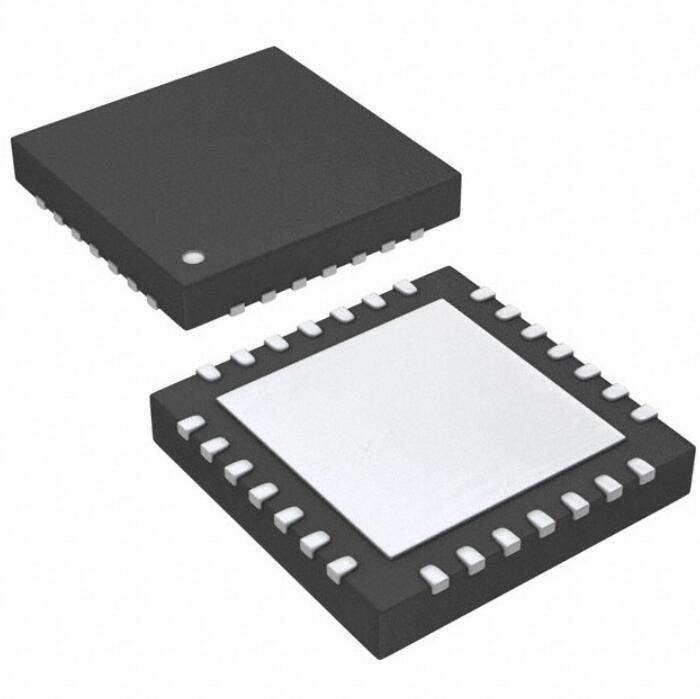

• Packaging: The DSPIC30F2012-20E/ML is available in a 28-pin QFN package, which is suitable for space-constrained applications.
• Extended Temperature Range: The device operates over an industrial temperature range, ensuring reliability in harsh environments.

Applications

Thanks to its high-speed processing capabilities and rich set of features, the DSPIC30F2012-20E/ML is an excellent choice for a variety of applications, including:

• Advanced motor control systems
• Power conversion and management
• Smart sensors and instrumentation
• Automotive and aeronautics systems
• Industrial control systems

The DSPIC30F2012-20E/ML by Microchip Technology offers a blend of performance, flexibility, and reliability, making it a valuable component for designers looking to create sophisticated and efficient electronic systems.
