Microchip Technology's DSPIC33EP32MC204-I/MV Product Overview

The dSPIC33EP32MC204-I/MV is a high-performance, 16-bit Digital Signal Controller (DSC) from Microchip Technology, designed to deliver the efficiency of a microcontroller with the computational power of a digital signal processor. This particular model is part of the dsPIC33E series, which is known for its enhanced features, including increased RAM and flash memory, as well as a host of integrated peripherals suitable for complex and demanding applications.

Key Features

• High-Performance DSC Core: The device boasts a 70 MIPS dsPIC DSC core with DSP and enhanced on-chip features, making it ideal for applications requiring intricate algorithmic processing like motor control, power conversion, and sensing.
• Program Memory: It comes with 32 KB of flash memory, providing ample space for application code storage.
• RAM: The DSC is equipped with 8 KB of RAM, enabling efficient data manipulation and storage for real-time processing tasks.
• Digital Peripherals: It includes various digital peripherals such as Quadrature Encoder Interfaces, Input Capture, and Output Compare modules, making it highly suitable for precision motor control.
• Advanced Analog Features: The device offers a 12-bit Analog-to-Digital Converter (ADC) with up to 16 channels, enabling accurate and rapid signal conversion for real-time monitoring and control.
• Flexible Communication: With multiple communication interfaces like UART, SPI, and I2C, the DSPIC33EP32MC204-I/MV ensures flexible and robust data exchange with other devices in the system.
• Temperature Range: The device operates over an industrial temperature range, ensuring reliability and performance under varying environmental conditions.

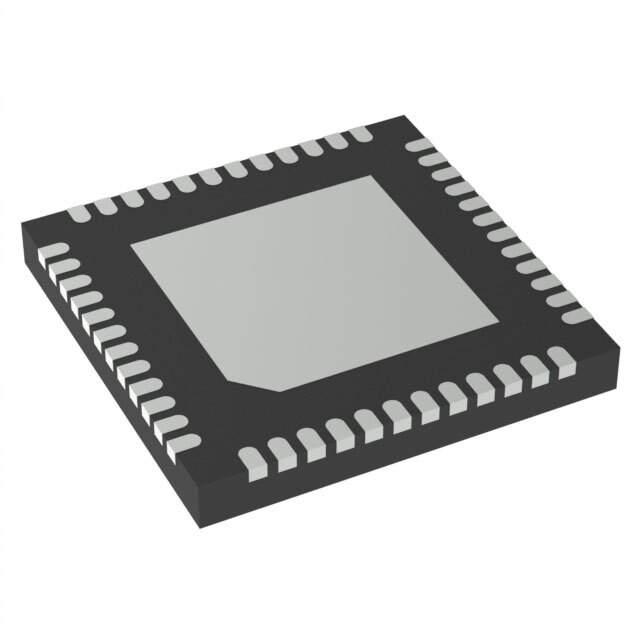

• Package: It is available in a 44-pin QFN package, which is compact and suitable for space-constrained applications.

Applications

The DSPIC33EP32MC204-I/MV is adept for a wide array of applications, especially where precise control and high-speed processing are paramount. It is commonly used in:

• Advanced Motor Control Systems
• Power Supply and Power Management
• Industrial Automation
• Automotive and Transportation
• Embedded Audio Applications
• Medical Devices

Microchip Technology's commitment to innovation is exemplified in the DSPIC33EP32MC204-I/MV, making it a go-to choice for engineers looking to develop advanced systems with a single chip solution that offers both microcontroller versatility and DSP performance.
