dSPIC33FJ64MC506A-I/MR Microcontroller Overview

The dSPIC33FJ64MC506A-I/MR is a high-performance, 16-bit Digital Signal Controller (DSC) from Microchip Technology, designed to offer the best of both worlds - the processing power of a DSP and the functionality of a microcontroller. This device is tailored for sophisticated applications that require seamless, efficient, and fast processing of complex algorithms, making it a perfect choice for motor control, power conversion, and sensing applications.

Key Features

• Core Performance: The dSPIC33FJ64MC506A-I/MR features a 16-bit modified Harvard architecture that can execute DSP instructions in a single cycle, providing up to 40 MIPS performance at 40MHz clock speed.
• Memory: Equipped with 64KB of flash memory and 8KB of SRAM, this DSC provides ample space for application code and data storage, reducing the need for external memory components.
• Advanced Motor Control: With dedicated motor control PWMs and analog-to-digital converters (ADCs), this device simplifies the design of complex control algorithms for brushless DC (BLDC), permanent magnet synchronous (PMSM), and AC induction motors.
• Robust Peripheral Set: It boasts a rich set of peripherals, including UART, SPI, I2C modules for communication, and input/output ports that can be mapped to various functions, offering flexibility in peripheral management.
• Enhanced Analog Features: The dSPIC33FJ64MC506A-I/MR includes a 10-bit ADC with multiple channels, allowing for precise measurement of analog signals, which is essential for real-time control applications.

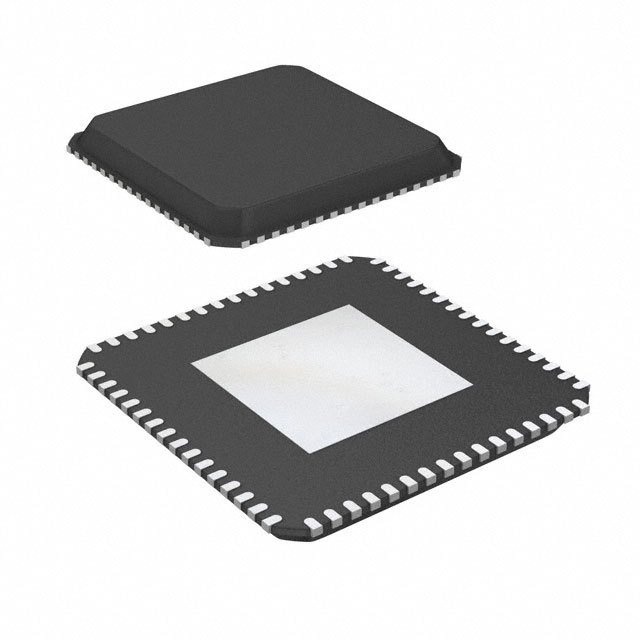

• Operating Conditions: This DSC operates over an industrial temperature range and comes in a 64-pin QFN package, suitable for space-constrained applications.

Applications

The dSPIC33FJ64MC506A-I/MR is engineered for applications that demand high-speed and accurate digital signal processing combined with full microcontroller functionality. It is widely used in:

• Advanced motor control systems
• Power supply and power management systems
• Industrial automation and control
• Automotive and transportation systems
• Audio and speech processing
• Sensing and instrumentation

With its robust architecture, comprehensive feature set, and versatile I/O options, the dSPIC33FJ64MC506A-I/MR is a powerful solution that can drive innovation and performance in a wide array of electronic products.
