The HV2762GA-G is a high-voltage, 32-channel analog switch IC from Microchip Technology, designed for precision applications in medical ultrasound imaging, non-destructive testing (NDT), and other high-voltage multiplexing tasks. This advanced integrated circuit (IC) is part of Microchip's portfolio of high-voltage interface solutions and is engineered to deliver exceptional performance and reliability.

Key Features

• High-Voltage Operation: The HV2762GA-G is capable of handling high-voltage signals up to +/-100V, making it suitable for various demanding applications.
• 32 Independently Controlled Channels: It offers a large array of 32 channels, each of which can be controlled independently, providing flexibility and precision in signal routing.
• Low Charge Injection: The device exhibits low charge injection, which minimizes signal distortion and ensures high-quality signal integrity.
• Low On-Resistance: The low on-resistance of the switches reduces power loss and improves overall efficiency.
• Daisy-Chain Capability: Multiple HV2762GA-G devices can be daisy-chained, allowing for the expansion of channel count without a significant increase in control lines.

Applications

• Medical Ultrasound Imaging
• Non-Destructive Testing Equipment
• High-Voltage Signal Routing
• Automated Test Equipment (ATE)

Product Specifications

• Supply Voltage: The device operates with a supply voltage range of +/-50V to +/-100V.

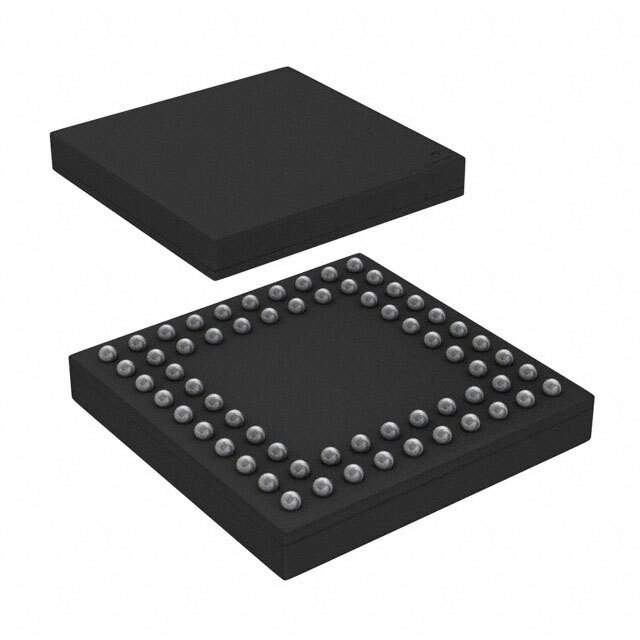

• Package: The HV2762GA-G comes in a compact, surface-mount package, making it suitable for space-constrained applications.
• Temperature Range: It is designed to operate over an extended temperature range, ensuring reliability under varying environmental conditions.

The Microchip Technology HV2762GA-G analog switch IC stands out for its high-voltage capability, precision channel control, and robust design. It is an ideal choice for engineers looking for a reliable solution to manage multiple high-voltage signals in complex systems.
