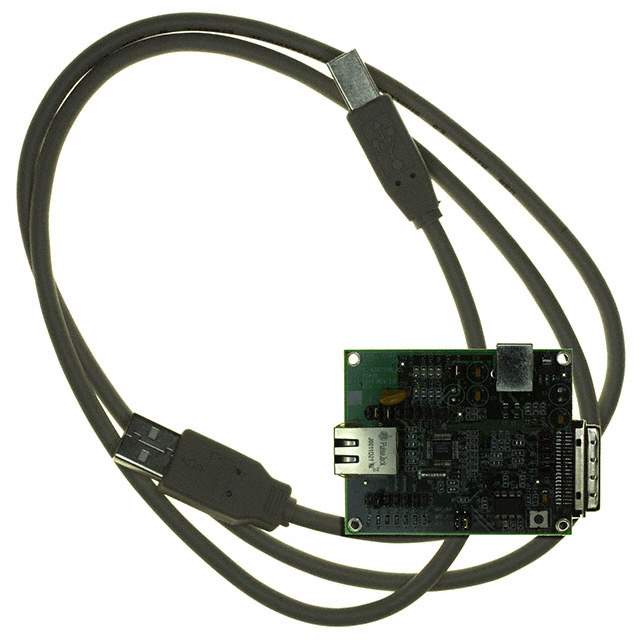

The KSZ8001L-EVAL evaluation board from Microchip Technology is a comprehensive platform designed for testing and evaluating the capabilities of the KSZ8001L, a single-supply 10/100Base-TX Ethernet physical-layer transceiver. This evaluation board is an essential tool for developers and engineers looking to integrate Ethernet connectivity into their applications with ease and reliability.

Key Features


• Robust Transceiver: At the heart of the KSZ8001L-EVAL is the KSZ8001L transceiver, which supports 10Base-T and 100Base-TX Ethernet standards, ensuring compatibility with a wide range of network devices.

• Flexible Power Options: The evaluation board can be powered through a single 3.3V supply, making it convenient for integration with most existing systems without the need for additional power components.

• Comprehensive Signal Support: It provides a full suite of signal interfaces including MII, RMII, and HP Auto MDI/MDI-X crossover, to accommodate various design requirements and simplify integration.

• Diagnostic LEDs: On-board LEDs offer immediate visual feedback for power, link status, activity, and speed, aiding in quick diagnostics and status monitoring.

• Accessible Test Points: The board includes test points for key signals, allowing for easy probing and analysis during development and troubleshooting.


Applications

The KSZ8001L-EVAL is ideal for evaluating the KSZ8001L transceiver for use in applications such as:


• Embedded systems

• Industrial controls

• Networked consumer electronics

• Home networking devices

• Network interface cards


Support and Resources

Microchip Technology provides extensive support for the KSZ8001L-EVAL, including detailed documentation, reference designs, and technical support from their team of experts. This ensures that developers can maximize the potential of the evaluation board and streamline the development process for their Ethernet-enabled projects.

With its robust feature set and supportive resources, the KSZ8001L-EVAL evaluation board is an invaluable tool for anyone looking to leverage the performance and reliability of the KSZ8001L Ethernet PHY in their next project.
