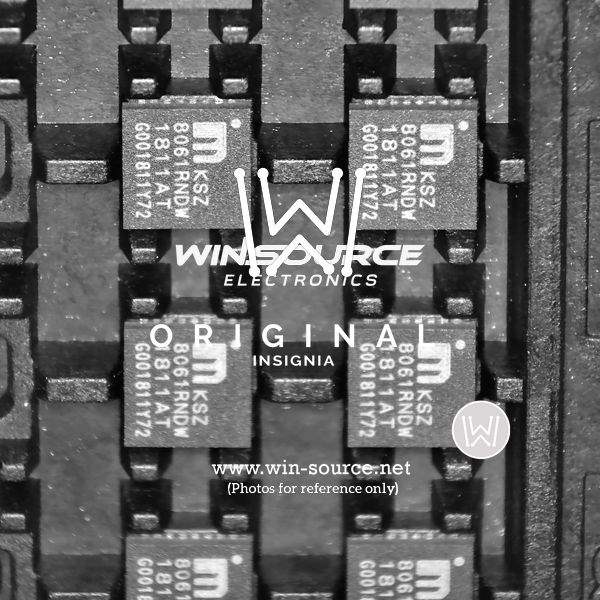

The KSZ8061RNDW-TR is a robust, low-power, 10Base-T/100Base-TX physical layer transceiver from the renowned manufacturer, Microchip Technology. This highly-integrated device is designed for high-speed data transmission over standard CAT-5 unshielded twisted pair (UTP) cable, making it an ideal choice for a wide range of industrial and commercial networking applications.

Key Features

• Energy Efficient: Incorporating Microchip's Quiet-WIRE® technology, the KSZ8061RNDW-TR offers enhanced link performance and noise suppression, ensuring energy-efficient Ethernet (EEE) operation that significantly reduces power consumption.
• Advanced Functionality: The device supports both half-duplex and full-duplex operation, auto-negotiation, and crossover detection and correction, providing a versatile solution for network connectivity.
• Robust Performance: With its extended temperature range and built-in electrostatic discharge (ESD) protection, the KSZ8061RNDW-TR is engineered to perform reliably in harsh environments.
• Compact Design: Available in a 24-pin, 4mm x 4mm QFN package, it is well-suited for space-constrained applications.

Applications

The KSZ8061RNDW-TR is commonly used in applications that require reliable network connectivity and low power consumption. These include, but are not limited to:

• Industrial Control Systems
• Building Automation
• Embedded Computing Systems
• Networked Printers and Servers
• Smart Home Devices

Technical Specifications

The device operates on a single 3.3V supply, with an industrial temperature range of -40°C to +85°C. It complies with the IEEE 802.3/802.3u Ethernet standards and offers an RMII (Reduced Media Independent Interface) for flexible connection to most MACs.

For developers and engineers looking to integrate Ethernet connectivity into their designs, the KSZ8061RNDW-TR provides a reliable and cost-effective solution backed by Microchip Technology's commitment to quality and long-term availability.
