Microchip Technology's M2S090T-1FG676I Product Overview

The M2S090T-1FG676I is a state-of-the-art system-on-chip (SoC) from Microchip Technology, designed to cater to the demanding requirements of modern embedded applications. As a member of Microchip's SmartFusion2 SoC FPGA family, this device integrates a wealth of features to provide a robust and flexible solution for designers.

Key Features

• FPGA Fabric: At the heart of the M2S090T-1FG676I lies a high-performance FPGA fabric. This fabric is optimized for low power consumption and high functionality, enabling complex logic designs and real-time processing capabilities.
• Microcontroller Subsystem: The device boasts an ARM Cortex-M3 processor running at up to 166 MHz, providing a powerful 32-bit computing core for embedded processing tasks. This includes a rich set of peripherals and memory controllers for a wide range of applications.
• Security Features: Security is a prime concern in today's connected world, and the M2S090T-1FG676I addresses this with advanced security features. These include a secure boot process, an AES/SHA hardware crypto engine, and a random number generator to ensure data protection and secure communications.
• Memory: The SoC offers an ample amount of on-chip memory resources, including non-volatile memory and SRAM, to support complex designs without the need for external memory components.

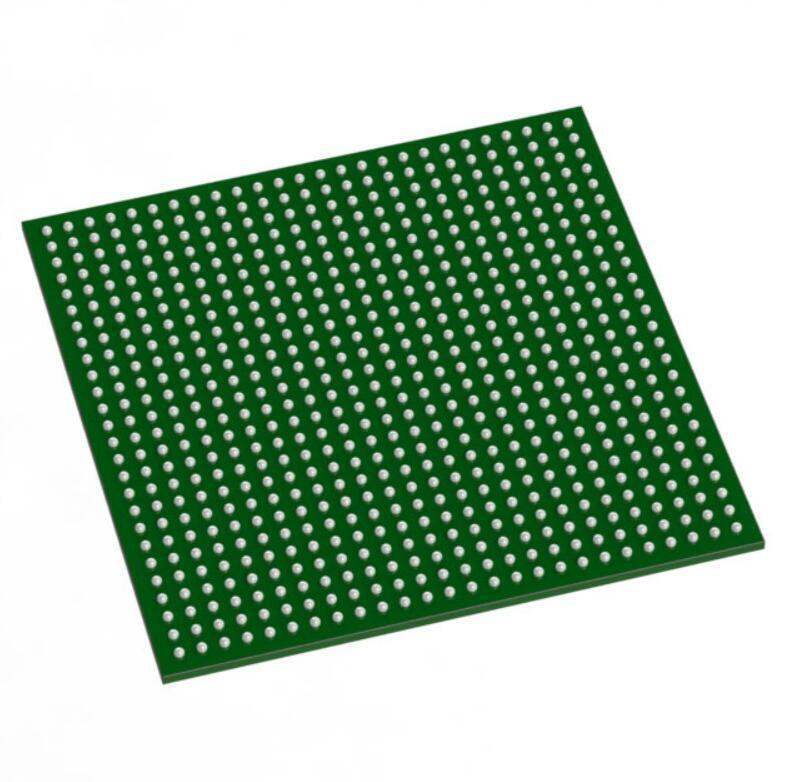

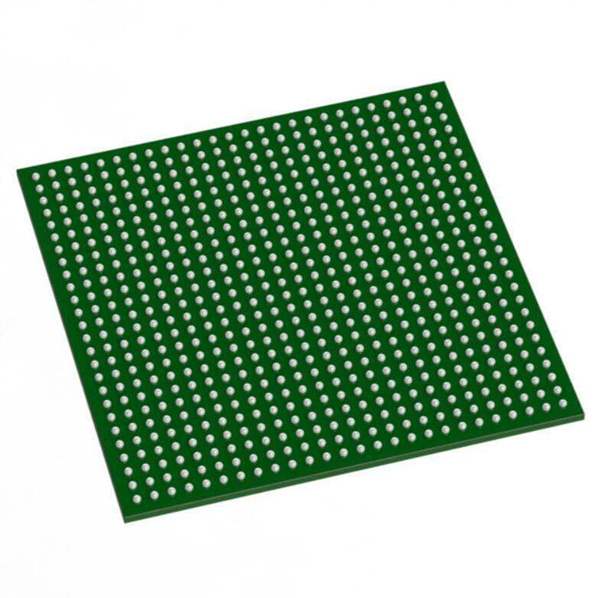

• I/O Capability: With 676-pin FinePitch BGA packaging, the M2S090T-1FG676I provides a wide array of input/output options. This allows for flexible interfacing with other components in embedded systems, including high-speed transceivers and a variety of digital and analog interfaces.
• Temperature Range: This industrial-grade component is designed to operate reliably in extreme environments, with an operating temperature range of -40°C to +100°C.

Applications

The versatility of the M2S090T-1FG676I makes it suitable for a broad spectrum of applications, including industrial control systems, automotive electronics, communication infrastructure, and defense systems. Its integrated approach reduces system complexity and accelerates time-to-market for product developers.

Overall, Microchip Technology's M2S090T-1FG676I offers an exceptional combination of performance, security, and flexibility, making it a top choice for engineers looking to create sophisticated and reliable embedded systems.
