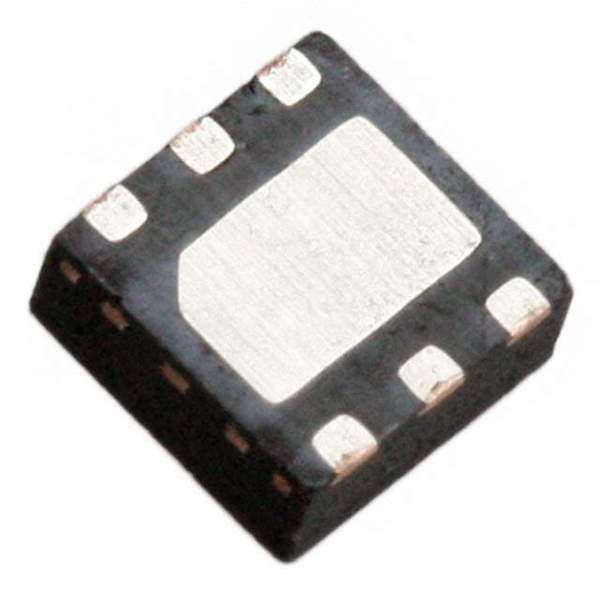

Product Overview: MCP1700T-3302E/MAY - Microchip Technology

The MCP1700T-3302E/MAY is a high-quality, low-dropout voltage regulator designed and manufactured by Microchip Technology, a leading provider of microcontroller, mixed-signal, analog, and Flash-IP solutions. This voltage regulator is part of the MCP1700 series, which is renowned for its low power consumption and stable output, making it an ideal choice for battery-powered devices and other applications where energy efficiency is a priority.

Key Features

• Output Voltage: The MCP1700T-3302E/MAY provides a fixed output voltage of 3.3V, which is suitable for powering a wide range of devices that require a stable 3.3V supply.
• Low Dropout Voltage: With a typical dropout voltage of only 178mV at 250mA, this LDO regulator ensures efficient operation even when the input voltage is close to the output voltage, thereby minimizing power loss and extending battery life.
• High Output Current: The device can deliver up to 250mA of output current, making it capable of powering a variety of low-power applications.
• Low Quiescent Current: It features a low quiescent current of 1.6µA (typical), which is essential for battery-operated devices as it helps to reduce the overall power consumption when the device is in standby mode.
• Stable with Ceramic Output Capacitors: The MCP1700T-3302E/MAY is stable with ceramic output capacitors that have a minimum value of 1µF, providing flexibility in design and ensuring a stable output for sensitive electronic circuits.
• Thermal and Overcurrent Protection: It includes built-in thermal shutdown and overcurrent protection features to safeguard the device and the connected load from damage due to excessive heat or current.
• Standard Package: The regulator is available in a 3-Pin SOT-23 package, which is widely used and suitable for automated assembly processes.

Applications

The MCP1700T-3302E/MAY is well-suited for a variety of applications, including but not limited to:

• Battery-powered devices
• Portable electronic equipment
• Microcontroller power supply
• Wireless communication devices
• Power management in IoT devices

In summary, the MCP1700T-3302E/MAY from Microchip Technology is a reliable and efficient voltage regulator that offers a balance between performance and power conservation, making it an excellent choice for designers looking to optimize their power-sensitive applications.
