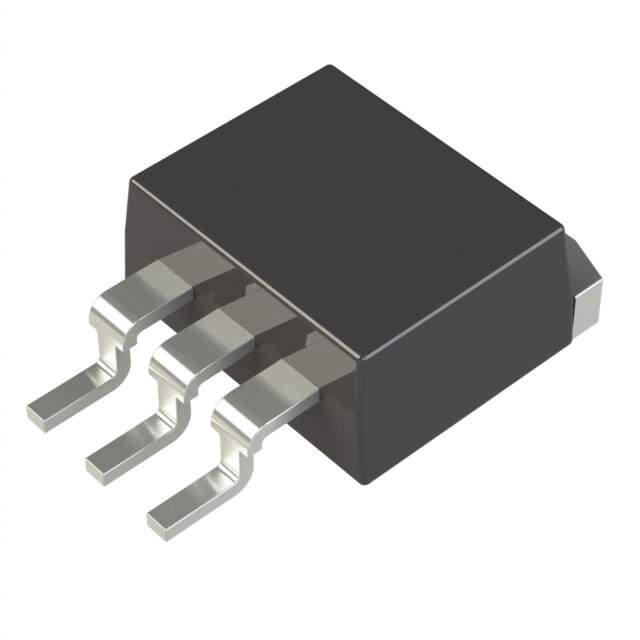

Microchip Technology MCP1825S-3302E/EB - Voltage Regulator

The MCP1825S-3302E/EB is a high-performance, 500 mA low-dropout voltage regulator from Microchip Technology, designed to deliver a fixed output voltage of 3.3V with enhanced stability and efficiency. This component is an excellent choice for applications requiring a regulated power supply with low voltage dropout, making it ideal for battery-powered devices and other systems where power efficiency is a priority.

Key Features:

• Output Voltage: Fixed 3.3V output to power a wide range of applications.
• High Current Output: Capable of delivering up to 500 mA of output current, suitable for various electronic circuits.
• Low Dropout Voltage: Offers a low dropout voltage, which enhances efficiency by allowing operation closer to the battery voltage.
• Stable Operation: Requires only a 1.0 µF ceramic output capacitor for stability, reducing the overall component count and board space.
• Thermal Overload Protection: Built-in thermal overload protection automatically shuts down the regulator to prevent damage from overheating.
• Short-Circuit Protection: Short-circuit current limiting provides additional safety for the regulator and the application it powers.
• Low Power Consumption: The MCP1825S-3302E/EB offers low quiescent current, which minimizes power consumption when in standby mode.

Applications:

This voltage regulator is versatile and can be used in various applications, including:

• Battery-powered devices
• Microcontroller power supplies
• Consumer electronics
• Portable instrumentation
• Analog and digital circuits

Package and Quality:

The MCP1825S-3302E/EB is available in a compact SOT-223 package, which is suitable for space-constrained applications. It is also supported by Microchip's commitment to quality and reliability, ensuring consistent performance across your applications.

For detailed specifications, application notes, and additional resources, visit Microchip Technology's official website or contact their support team for technical assistance.
