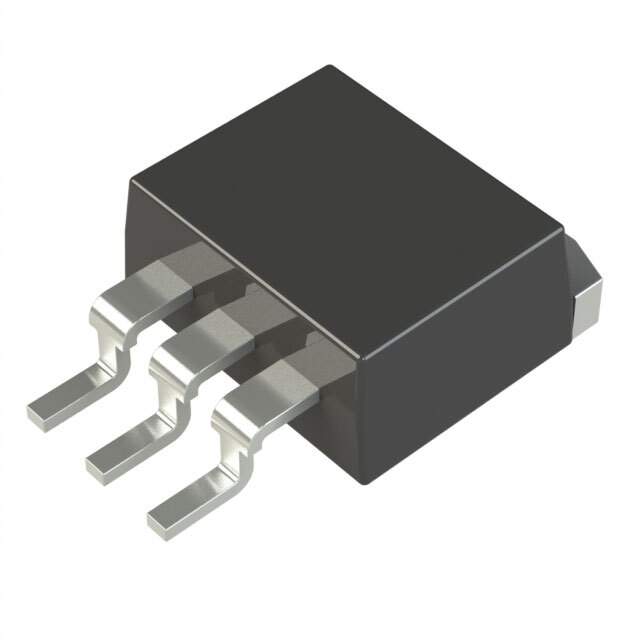

Microchip Technology's MCP1826ST-5002E/EB Low Dropout Voltage Regulator

The MCP1826ST-5002E/EB is a high-performance, low dropout voltage regulator from Microchip Technology, designed to deliver a steady and reliable power supply to sensitive electronic circuits. With an output voltage of 5V and a maximum output current of 1A, this LDO (Low Dropout Regulator) is an ideal choice for microcontroller-based systems, analog devices, and other digital applications requiring a stable voltage source.

Key Features

• Output Voltage: Fixed 5V output suitable for a wide range of applications.
• High Current Capability: Capable of delivering up to 1A of output current.
• Low Dropout Voltage: Ensures efficient operation even with very low differences between input and output voltages.
• High Accuracy: Output voltage accuracy is maintained within ±0.5%, providing precise voltage regulation.
• Thermal Regulation: Integrated thermal protection safeguards the device from overheating.
• Short Circuit Protection: Offers robust protection against short circuit conditions, enhancing system reliability.
• Stable with Ceramic Output Capacitors: Compatible with low-cost, readily available ceramic capacitors, which are stable with 1.0µF to 22µF of output capacitance.

Applications

The MCP1826ST-5002E/EB is versatile and can be used in various applications, including:

• Portable Devices
• Microcontroller Power Supplies
• Consumer Electronics
• Analog and Digital Circuits
• Networking Equipment

Package and Availability

The device is offered in a SOT-223 package, which is known for its small footprint and excellent power dissipation characteristics. The package is well-suited for PCBs with limited space, making it an excellent choice for compact designs. The MCP1826ST-5002E/EB is available and can be sourced from Microchip Technology and authorized distributors, ensuring easy access for designers and manufacturers.

With its combination of performance, efficiency, and reliability, the MCP1826ST-5002E/EB stands out as a dependable component for maintaining a clean power supply in a wide array of electronic products.
