Microchip Technology MCP2515-E/ML CAN Controller

The MCP2515-E/ML is a stand-alone Controller Area Network (CAN) controller developed by Microchip Technology, a leader in microcontroller and analog semiconductors. It implements the CAN specification, version 2.0B, at speeds of up to 1 Mb/s. The MCP2515-E/ML is designed to provide a simple interface between a CAN protocol controller and the physical two-wire CAN bus.

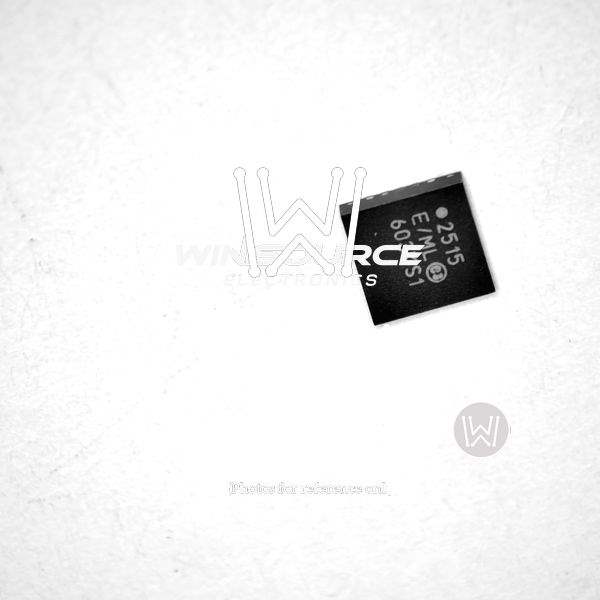

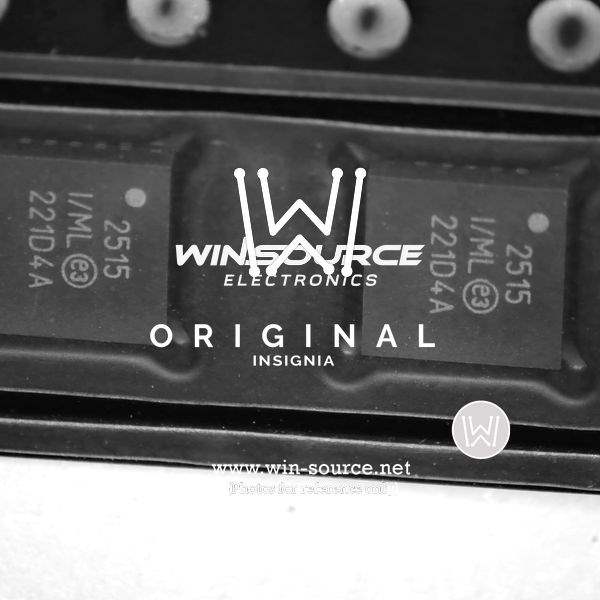

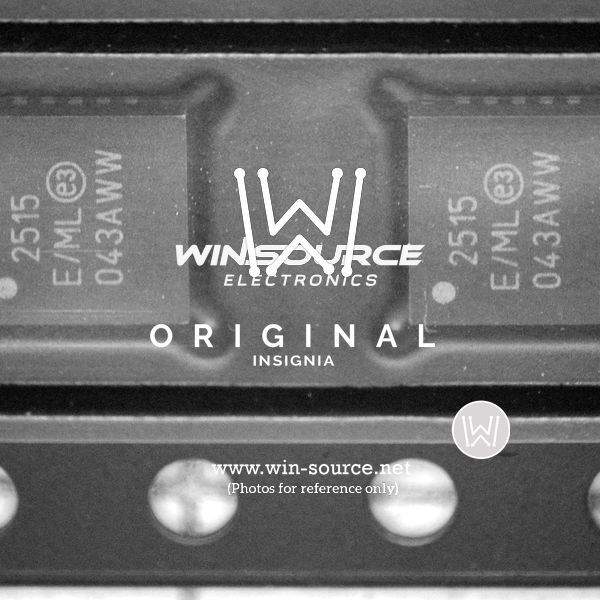

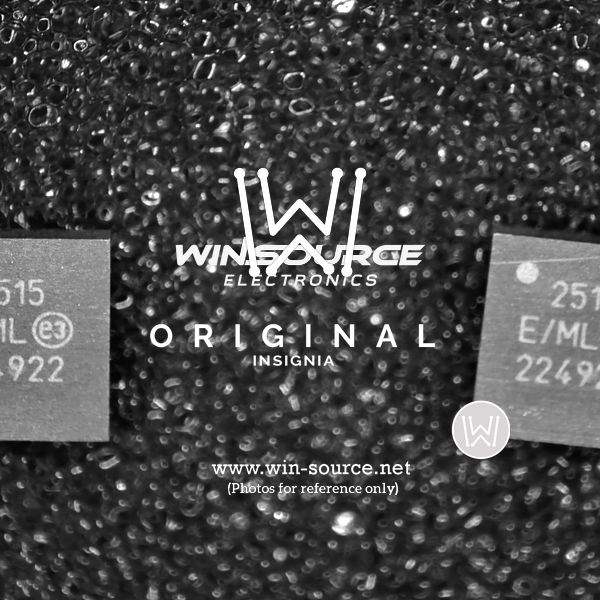

This device comes in a 20-pin QFN package, which is suitable for space-constrained applications. It operates over an industrial temperature range, making it a robust choice for automotive and industrial environments. The MCP2515-E/ML is equipped with a high-speed SPI interface, which supports clock speeds up to 10 MHz, allowing for quick communications with a host microcontroller.

One of the key features of the MCP2515-E/ML is its ability to operate as a fully stand-alone CAN controller, including message filtering, which is crucial for complex CAN networks. The device also includes two acceptance masks and six acceptance filters that can be configured to meet the needs of the CAN network communication. Moreover, it has a buffer that can store multiple messages for efficient data management.

The MCP2515-E/ML is equipped with several safety features, such as error detection mechanisms and a fault confinement module, which enhance the reliability of the communication. Additionally, it has a wake-up functionality that allows it to conserve power when the CAN bus is idle, making it suitable for low-power applications.

Overall, the MCP2515-E/ML from Microchip Technology is an advanced CAN controller that offers a balance between performance and power consumption, making it an excellent choice for automotive networks, industrial automation systems, and any application requiring robust serial communication capabilities.
