Microchip Technology MCP4531T-104E/MS Digital Potentiometer

The MCP4531T-104E/MS is a high-performance, digitally controlled potentiometer (digipot) from Microchip Technology, a leading provider of microcontroller, mixed-signal, analog, and Flash-IP solutions. This device offers a compact and precise method for adjusting resistance values electronically, making it an ideal solution for a wide range of applications that require calibration, tuning, and adjustments in end products.

Key Features:

• Resistance Value: The MCP4531T-104E/MS offers a 100kΩ maximum resistance value, providing ample range for various applications.
• Resolution: It features 7-bits (128 wiper steps) of resolution, allowing for fine adjustment of the resistance.
• Interface: The device uses an I2C compatible serial interface, ensuring easy integration with most microcontrollers and allowing for a simple two-wire connection.

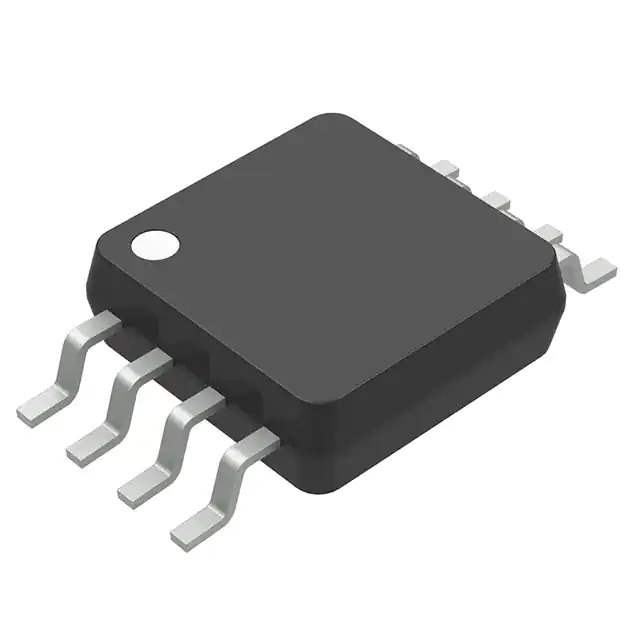

• Package: It comes in an MSOP-8 (Micro Small Outline Package) which is suitable for space-constrained applications.
• Single Supply Operation: The MCP4531T-104E/MS operates from a single 2.7V to 5.5V supply, making it versatile for both 3.3V and 5V systems.
• Non-volatile Memory: It includes non-volatile memory for storing the wiper position, ensuring the last set resistance is maintained even after power cycling.
• Temperature Range: This digipot is designed to operate over the industrial temperature range of -40°C to +125°C.
• Performance: The device offers low power consumption and high reliability, with a static current of only 5 µA (max) and 1 mA typical wiper current.

Applications:

The MCP4531T-104E/MS is suitable for a variety of applications, including but not limited to:

• Automated product calibration
• Programmable voltage and current sources
• Programmable filters, delays, and time constants
• Consumer electronics volume and tone control
• Industrial and automotive electronics adjustments

This digital potentiometer from Microchip Technology is a versatile and reliable component for designers looking to incorporate programmable resistance adjustments into their electronic designs. With its broad operating temperature range, non-volatile memory, and compact footprint, the MCP4531T-104E/MS is an excellent choice for applications requiring precise and durable variable resistance settings.
