Microchip Technology's MCP6024-I/SL Operational Amplifier

The MCP6024-I/SL is a high-precision quad operational amplifier (op-amp) developed by Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This op-amp is designed for analog applications that require low power consumption, high accuracy, and a wide bandwidth. It is particularly suitable for battery-powered devices, medical instruments, and industrial control systems.

Featuring a rail-to-rail input and output swing, the MCP6024-I/SL operates with a single power supply ranging from 2.7V to 5.5V. This versatility allows for seamless integration into a variety of circuit designs without the need for dual supplies, simplifying the power management in complex systems.

The device boasts a gain bandwidth product of 10 MHz and a low typical quiescent current of just 1.0 mA per amplifier at 5V. This balance of power efficiency and performance makes it an excellent choice for applications requiring continuous operation without sacrificing signal fidelity.

The MCP6024-I/SL also features a low input bias current of 1 pA, which minimizes errors in high-impedance applications, and an enhanced EMI (Electromagnetic Interference) rejection ratio to ensure stable operation in noisy environments. Its extended temperature range from -40°C to +125°C guarantees reliable performance in extreme conditions.

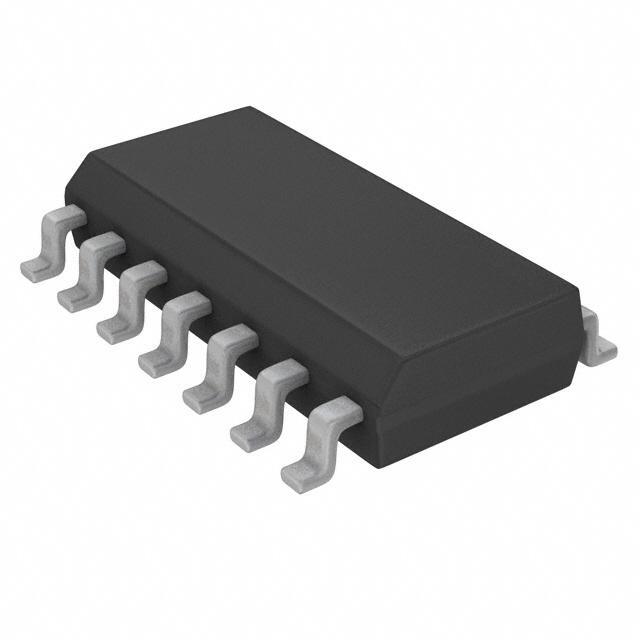

Packaged in a 14-pin SOIC (Small Outline Integrated Circuit), the MCP6024-I/SL is designed for easy integration into a variety of electronic assemblies. The combination of high accuracy, low power consumption, and robust design makes this op-amp an ideal choice for designers looking to optimize their analog circuitry in both performance and power efficiency.

For those interested in evaluating the MCP6024-I/SL, Microchip Technology provides comprehensive support including datasheets, reference designs, and development tools to streamline the design process and reduce time to market.
