Products specifications

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 6 Weeks
Features Comparator General Purpose CMOS, Open-Drain SC-70-5
Manufacturer Microchip Technology
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
Package 5-TSSOP, SC-70-5, SOT-353
Case / Package SC-70-5
Family Name MCP6566
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number MCP6566T-E/LTDKR, MCP6566TELT, MCP6566T-E/LTCT, MCP6566T-E/LTTR
Quantity per package 3000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 844626-MCP6566T-E/LT
Ultra Librarian 3D Model Ultra Librarian MCP6566T-E/LT CAD Model

Description

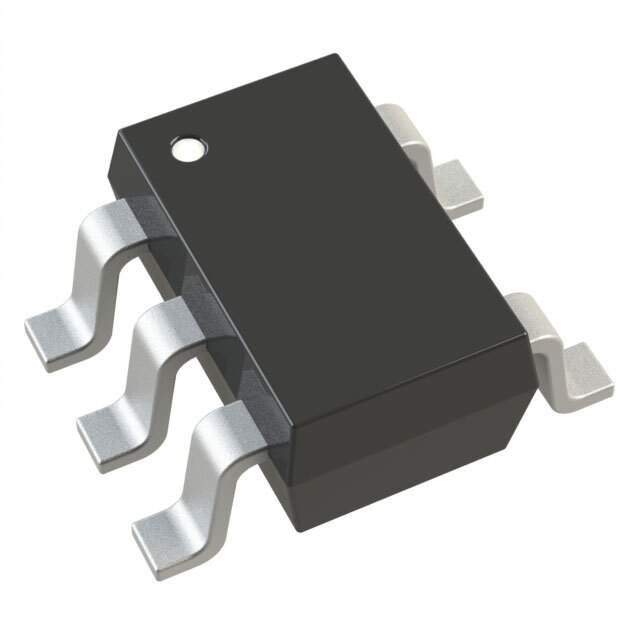

Microchip Technology's MCP6566T-E/LT Comparator

The MCP6566T-E/LT is a high-performance, low-power comparator from Microchip Technology, designed to offer a reliable solution for a variety of electronic applications. This comparator is part of the MCP6566 family, which is known for its precision and efficiency in voltage level detection and signal processing tasks.

Key Features

  • Low Quiescent Current: The device consumes a minimal amount of power, with a typical quiescent current of 1 µA, making it an excellent choice for battery-operated and portable applications where power conservation is crucial.
  • Wide Supply Voltage Range: The MCP6566T-E/LT operates over a broad supply voltage range of 1.6V to 5.5V, providing versatility in different circuit configurations and compatibility with both TTL and CMOS logic levels.
  • Fast Response Time: With a propagation delay typically less than 4 µs, the comparator ensures quick response times, which is essential for time-sensitive applications.
  • Push-Pull Output: The device features a push-pull output stage that eliminates the need for an external pull-up resistor and allows for direct interfacing with a microcontroller or other digital logic.
  • Extended Temperature Range: The MCP6566T-E/LT is designed to operate over an industrial temperature range of -40°C to +125°C, ensuring reliable performance in harsh environmental conditions.

Applications

The versatility of the MCP6566T-E/LT makes it suitable for a wide range of applications, including:

  • Battery monitoring systems
  • Window detectors
  • Zero-crossing detectors
  • Level shifters
  • Portable electronic devices
  • Control systems

Quality and Reliability

Microchip Technology is committed to providing high-quality and reliable components. The MCP6566T-E/LT is built to meet stringent industry standards, ensuring long-term stability and performance in your electronic projects.

Whether you are designing a simple voltage comparator circuit or an advanced control system, the MCP6566T-E/LT from Microchip Technology is a dependable choice that combines efficiency, accuracy, and durability.
