Microchip Technology's MCP73830LT-0AAI/MYY - Charge Management Controller

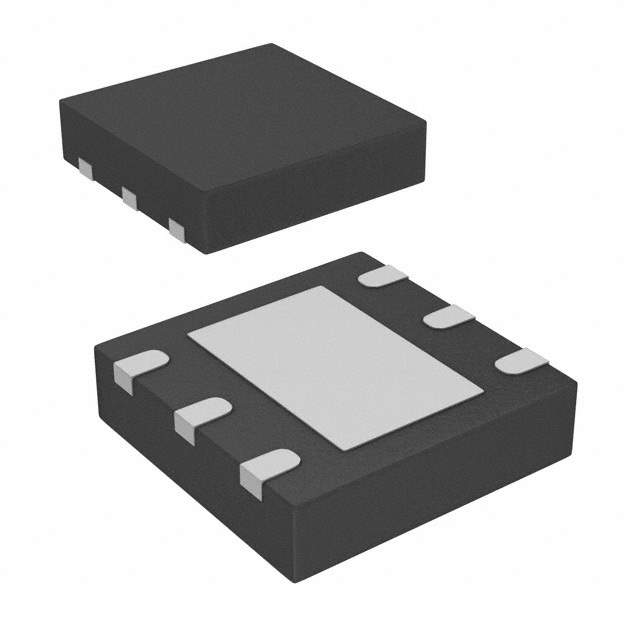

The MCP73830LT-0AAI/MYY from Microchip Technology is a highly integrated linear charge management controller designed for space-limited and cost-sensitive applications. It is specifically tailored for charging single-cell Lithium-Ion or Lithium-Polymer batteries. This miniature controller comes in a 2x3mm DFN package, making it an ideal solution for portable electronic devices where real estate is at a premium.

The MCP73830LT-0AAI/MYY features a constant current/constant voltage charge algorithm with selectable preconditioning and charge termination. The preconditioning function ensures that batteries which have been deeply discharged are safely brought up to a voltage level where they can accept a full charge. The charge termination feature helps to maximize battery life by preventing overcharging.

With a programmable charge current from 15mA to 500mA, the device allows designers to tailor the charging to the specific needs of their application. The charge voltage regulation is fixed at 4.2V, which is suitable for most single-cell Lithium-Ion batteries. Additionally, the device includes an automatic recharge feature, which initiates a new charge cycle when the battery voltage falls below a certain threshold, ensuring the device remains ready for use.

Safety features are paramount in battery management, and the MCP73830LT-0AAI/MYY incorporates a range of protections. Thermal regulation optimizes the charge cycle in response to the temperature of the device, preventing overheating. Other safety features include under voltage lockout, automatic end-of-charge control, and overcurrent protection, all of which contribute to the safe and reliable operation of the charging process.

Overall, the MCP73830LT-0AAI/MYY is a compact, efficient, and versatile charging solution that provides a secure and convenient way to manage power in portable electronic devices. Its advanced feature set ensures that batteries are charged quickly, efficiently, and safely, making it an excellent choice for modern, battery-powered applications.
