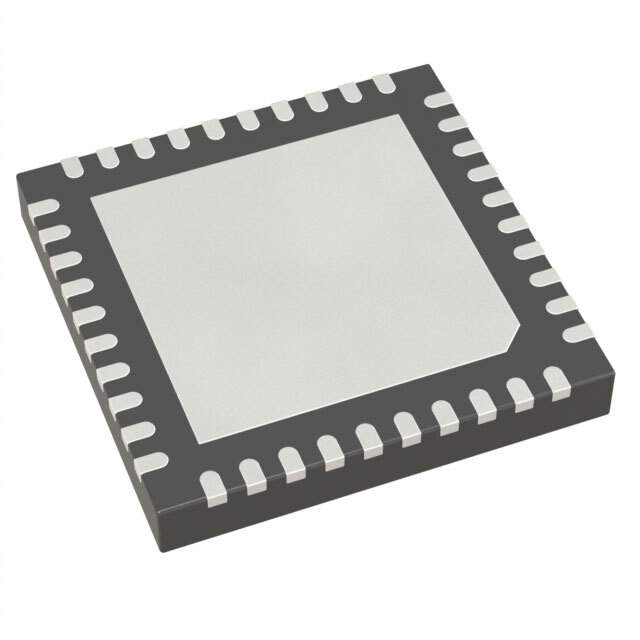

Microchip Technology MCP8025A-115E/MP Motor Driver

The MCP8025A-115E/MP from Microchip Technology is a highly integrated Brushless DC (BLDC) motor driver designed to provide an efficient and versatile solution for automotive and industrial applications. This advanced motor driver combines a range of features that make it an ideal choice for controlling 3-phase BLDC motors.

Key Features:

• Integrated Functions: The MCP8025A-115E/MP incorporates a range of integrated functions including a voltage regulator, LIN transceiver, MOSFET drivers, and a charge pump for high-side gate drive. This integration helps reduce system complexity and component count, leading to a more compact and reliable design.
• High Temperature Operation: With an operational temperature range of -40°C to +150°C, this motor driver is built to withstand harsh environments, making it suitable for automotive under-the-hood applications as well as industrial settings.
• Protection Features: The device includes several protection features such as under-voltage lockout, over-temperature shutdown, over-current limiting, and lock-up protection. These features enhance the safety and durability of the motor control system.
• Communication Interface: The integrated LIN transceiver conforms to LIN 2.1 and SAE J2602 standards, facilitating communication in vehicle networking applications.
• Power Supply: The MCP8025A-115E/MP operates with a supply voltage ranging from 5.5V to 28V, accommodating a wide array of power sources and ensuring flexibility in various application scenarios.

Applications:

This motor driver is well-suited for a variety of applications including but not limited to automotive fuel pumps, HVAC blowers, engine cooling fans, and electric power steering systems. Its robust design also makes it an excellent choice for industrial automation tasks requiring precise motor control.

Conclusion:

In summary, the MCP8025A-115E/MP motor driver is a comprehensive solution that offers a blend of performance, integration, and protection. Its robust feature set ensures that it can meet the demands of complex motor control applications, delivering both efficiency and reliability.
