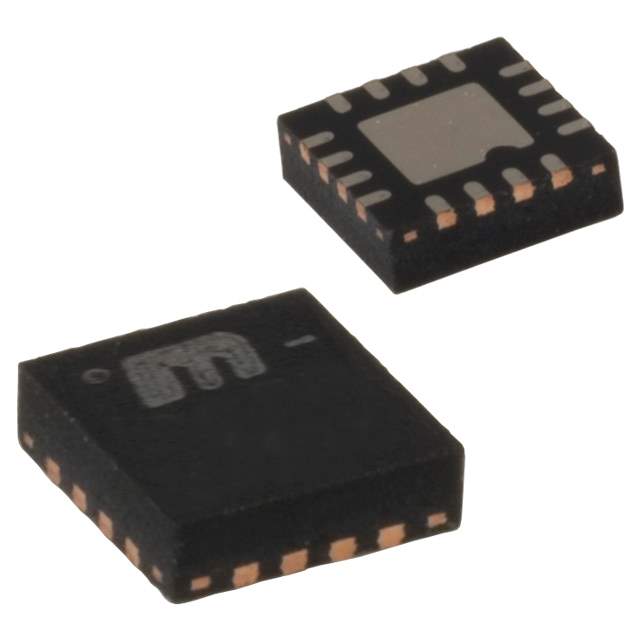

MIC2215-AAAYML-TR

Part No MIC2215-AAAYML-TR
Manufacturer Microchip Technology
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO ADJ 0.25A 16MLF
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Microchip Technology
Packaging Reel - TR
Status Active
Output Type Adjustable
Number of Regulators 3
Maximum Input Voltage 5.5V
Nominal Output Voltage (Min/Fixed) 1.25V
Maximum Output Voltage 5.225V
Dropout Voltage-Max 0.275V @ 250mA, 0.275V @ 250mA, 0.275V @ 250mA
Output Current 250mA, 250mA, 250mA
Operating Supply Current 150μA to 550μA
PSRR 70dB to 45dB (100Hz to 1kHz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C to 125°C
Regulator Topology Positive Adjustable
Output Voltage 1.25 V to 5.5 V
Voltage - Dropout (Typical) 0.17V @ 250mA
Mounting SMD (SMT)
Case / Package 16-MLF (4x4)
Win Source Part Number 104131-MIC2215-AAAYML-TR
Ultra Librarian 3D Model Ultra Librarian MIC2215-AAAYML-TR CAD Model

Description

Product Overview: MIC2215-AAAYML-TR from Microchip Technology

The MIC2215-AAAYML-TR is a high-performance, dual LDO (Low Dropout Regulator) integrated circuit designed and manufactured by Microchip Technology, a renowned leader in the semiconductor industry. This component is specifically engineered to provide stable and reliable power management solutions in a variety of electronic applications. Its dual LDO architecture allows for simultaneous regulation of two different voltage rails, making it an ideal choice for systems requiring multiple regulated outputs.

Key Features

  • Dual Channel LDO: The MIC2215 offers two independent voltage regulators in one compact package, providing efficient use of PCB space and reducing the need for additional components.
  • High Accuracy: With tight output voltage accuracy, the device ensures precise voltage regulation, which is crucial for sensitive electronic circuits.
  • Low Dropout Voltage: The LDOs are designed with a low dropout voltage to maintain regulation even when the supply voltage is close to the output voltage, enhancing system efficiency.
  • Adjustable Output: Users can set the output voltage to their desired levels, offering flexibility across different design requirements.
  • Thermal Shutdown and Current Limit Protection: These built-in safety features protect the device and the system from damage due to overheating and overcurrent conditions.
  • Power Good Output: This feature provides a status signal indicating when the output voltage is within the nominal operating range, which is essential for power sequencing and system reliability.

Applications

The MIC2215-AAAYML-TR is suitable for a broad range of applications, including but not limited to:

  • Portable Devices
  • Wireless Communication Systems
  • Battery-Powered Equipment
  • Microprocessor/Microcontroller Power Supplies

Package and Availability

The device is available in a compact MLF® package, which is designed for space-constrained applications. The suffix 'TR' denotes that the product is provided in tape and reel packaging, facilitating automated assembly processes for high-volume production. Microchip Technology's commitment to quality ensures that the MIC2215-AAAYML-TR meets the stringent requirements of the industry, providing a reliable and efficient power management solution for your electronic designs.
