Microchip Technology MIC22700YML-TR

The MIC22700YML-TR is a high-performance, integrated step-down (buck) regulator designed by Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This regulator is part of Microchip's expansive product portfolio that caters to a wide range of power management applications. The MIC22700YML-TR is specifically crafted to meet the rigorous demands of high-efficiency, space-constrained power supply designs.

Key Features

• High Efficiency: The MIC22700YML-TR is capable of delivering up to 96% efficiency, which helps to minimize heat dissipation and allows for cooler operation even under full load conditions.
• Output Current: This device is capable of providing a continuous output current of up to 7A, making it suitable for powering a diverse range of high-power applications.
• Wide Input Voltage Range: With an input voltage range of 4.5V to 26.5V, the MIC22700YML-TR is versatile enough to be used in various systems with different power supply requirements.
• Adjustable Output Voltage: The output voltage is adjustable from 0.8V to 5.5V, which allows for precise voltage regulation tailored to the needs of the specific application.
• High-Frequency Operation: Operating at a fixed frequency of 600kHz, the MIC22700YML-TR enables the use of small, low-cost external components, such as inductors and capacitors, thus reducing the overall solution footprint.
• Thermal and Overcurrent Protection: The device includes built-in thermal shutdown and overcurrent protection features to ensure reliable operation and prevent damage from overheating or excessive current conditions.

Applications

The MIC22700YML-TR is an ideal choice for a variety of applications, including but not limited to:

• Telecommunications and networking equipment
• Industrial and medical equipment
• Computing and storage platforms
• FPGA and DSP power supplies

Package and Availability

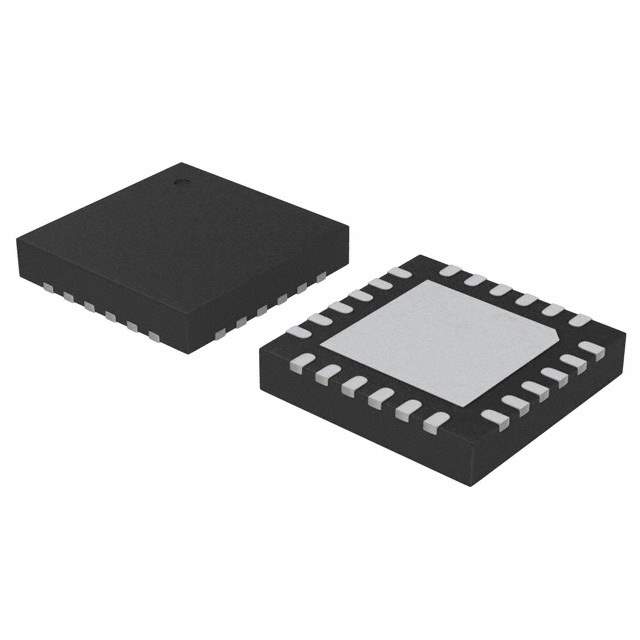

The MIC22700YML-TR comes in a compact 22-pin 4mm x 4mm MLF® package, which is optimal for space-constrained applications. The device is available in tape and reel format, denoted by the "-TR" suffix, facilitating efficient handling and manufacturing processes. With its robust design and comprehensive feature set, the MIC22700YML-TR from Microchip Technology stands out as a reliable and flexible solution for advanced power regulation needs.
