Microchip Technology's MIC23030-AYMT-TR Step-Down Regulator

The MIC23030-AYMT-TR from Microchip Technology is a high-efficiency, 4MHz synchronous buck (step-down) regulator that offers a compact and power-efficient solution for a wide range of applications. This regulator is designed to provide a regulated output voltage from an unregulated input voltage, making it an ideal choice for portable devices where battery life and efficiency are critical.

Key Features

• Output Voltage: The MIC23030-AYMT-TR delivers an adjustable output voltage range from 0.6V to 3.6V, allowing for versatile use in various electronic circuits and systems.
• High Efficiency: With up to 95% efficiency, this regulator ensures minimal power loss during voltage conversion, thereby extending battery life in portable applications.
• High-Frequency Operation: Its 4MHz switching frequency allows for the use of small external components, reducing the overall solution footprint and saving board space.
• Low Quiescent Current: The device features a low quiescent current of 22µA, which is beneficial for battery-powered applications where reducing standby power consumption is crucial.
• Power Good (PG) Output: The integrated Power Good indicator provides a real-time signal when the output voltage is within a specified range, which is useful for power sequencing and monitoring.
• Thermal Shutdown Protection: Built-in thermal shutdown protection ensures the device operates within safe temperature limits, enhancing system reliability.
• Current Mode Control: The MIC23030-AYMT-TR utilizes current mode control for fast transient response and easy compensation.

Applications

The versatility of the MIC23030-AYMT-TR makes it suitable for a diverse array of applications, including but not limited to:

• Portable Electronics
• Wireless Networking Devices
• Battery-Powered Equipment
• Smartphones and Tablets
• Wearable Technology
• GPS Devices

Packaging and Availability

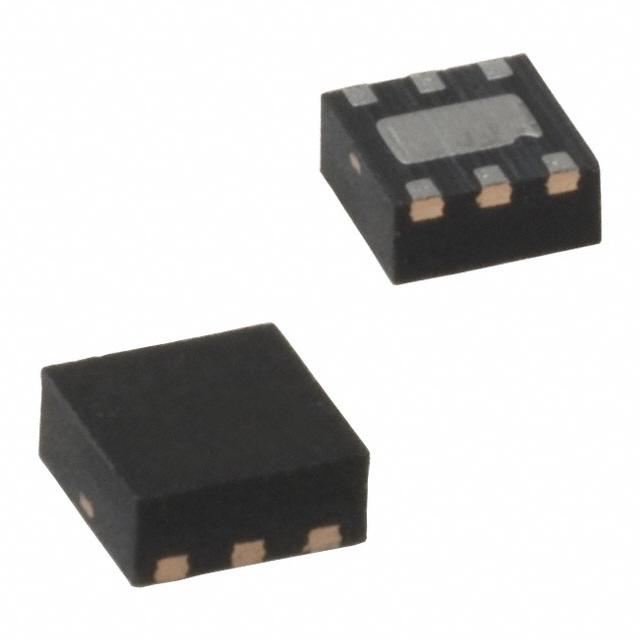

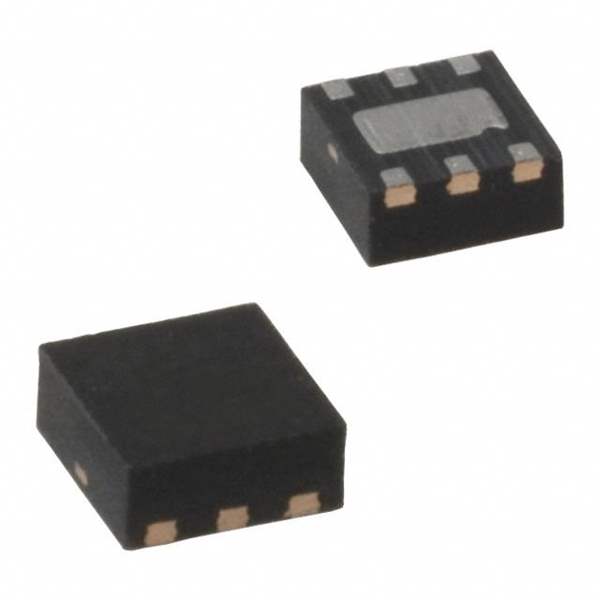

This step-down regulator is available in a compact 6-pin 2x2mm Thin DFN package, which is ideal for space-constrained applications. The "TR" suffix in the part number MIC23030-AYMT-TR indicates that this component is provided in tape and reel packaging, facilitating automated assembly processes for high-volume manufacturing.

Microchip Technology's MIC23030-AYMT-TR step-down regulator combines high efficiency, a compact form factor, and advanced features to meet the needs of modern electronic designs requiring stable and efficient power management.
