MIC2563A-1BSM from Microchip Technology

The MIC2563A-1BSM is a sophisticated integrated circuit produced by Microchip Technology, a leader in the field of smart, connected, and secure embedded control solutions. This particular product is a dual-slot PC Card power interface switch that is designed to manage the distribution of power within electronic devices, such as laptops, PDAs, and other portable equipment that utilize PC Cards (also known as PCMCIA cards).

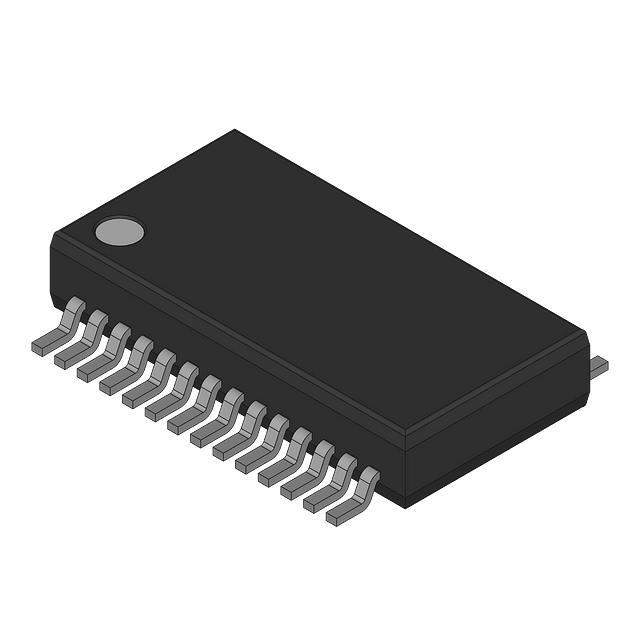

The MIC2563A-1BSM is tailored to provide a seamless and efficient interface between the system power supplies and the PC Card slots. It comes in a compact 24-lead SOIC (Small Outline Integrated Circuit) package, making it suitable for space-constrained applications. The device operates with a single 3.3V or 5V power supply, which is common in many digital systems, ensuring compatibility and ease of integration.

Among its features, the MIC2563A-1BSM boasts integrated 0.5-ohm switches that provide the PC Card VCC and VPP voltages. It has a programmable current limit, which helps protect the system from overcurrent conditions that could potentially damage the device or the PC Cards. Additionally, the product includes thermal shutdown protection to prevent overheating, further enhancing its reliability and safety.

The device is also equipped with under-voltage lockout (UVLO) to ensure that the switches operate at adequate voltage levels, thereby safeguarding the system and the cards. Moreover, the MIC2563A-1BSM features logic level control inputs that are compatible with 3.3V or 5V logic, which provides designers with flexibility in control interface design.

The MIC2563A-1BSM is an excellent choice for designers looking for a power management solution for PC Card applications that require high efficiency, compact size, and advanced protection features. Its robust design and comprehensive feature set make it a valuable component in creating reliable and user-friendly portable electronic systems.
