Product Overview: MIC29201-3.3BU from Microchip Technology

The MIC29201-3.3BU is a robust, high-current, low-dropout (LDO) voltage regulator designed by Microchip Technology, a leader in microcontroller, mixed-signal, analog, and Flash-IP solutions. This LDO regulator offers a fixed output voltage of 3.3V, designed to provide a stable power supply with a high current output of up to 400mA, making it ideal for a wide range of applications.

Key Features

• High Output Current: Capable of delivering up to 400mA, this LDO is suitable for high-current applications.
• Low Dropout Voltage: The MIC29201-3.3BU offers a low dropout voltage, ensuring efficient operation even when the input voltage is close to the output voltage.
• Fixed Output: The device provides a stable 3.3V output, which is common in digital circuits and microcontroller-based systems.
• Thermal and Overcurrent Protection: Built-in safety features protect the device and the connected load from damage due to excessive heat or current.
• Wide Operating Temperature Range: This LDO can operate over a broad temperature range, making it suitable for industrial and automotive applications.

Applications

The MIC29201-3.3BU is versatile and can be used in various electronic devices and systems. Its high current capability and stable output make it particularly useful in:

• Power supplies for microcontrollers and digital systems
• Automotive electronics
• Industrial control systems
• Battery-powered devices
• Peripheral power supplies

Product Specifications

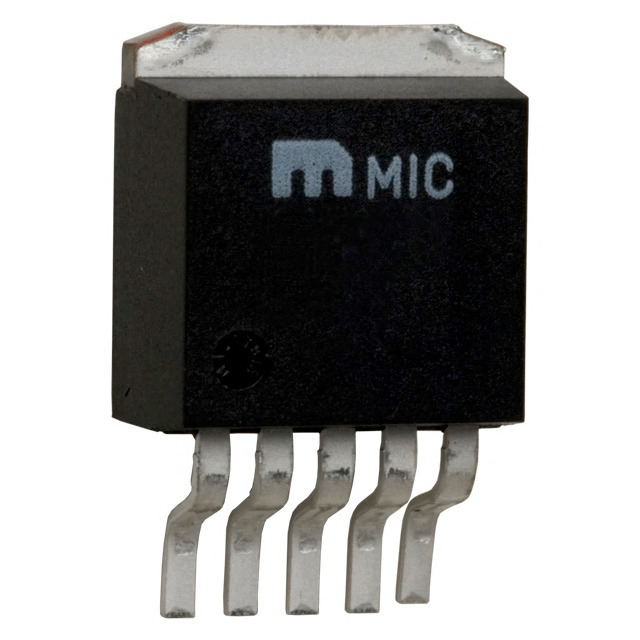

The regulator is available in a TO-263 (D2PAK) package, which is suitable for surface-mount technology (SMT) and offers good thermal performance. The MIC29201-3.3BU requires minimal external components, simplifying design and reducing overall system cost.

Conclusion

With its high reliability, robust protection features, and high current output, the MIC29201-3.3BU from Microchip Technology stands out as a go-to LDO voltage regulator for engineers and designers looking to ensure stable power delivery in their electronic projects and products.
