Product Overview: MIC29301-3.3WU by Microchip Technology

The MIC29301-3.3WU is a high-performance, low-dropout linear voltage regulator designed and manufactured by Microchip Technology. This regulator is capable of delivering a continuous output current of up to 3A with a fixed output voltage of 3.3V, making it an ideal solution for powering sensitive electronic circuits that require a stable and reliable power supply.

Key Features

• High Current Output: Provides up to 3A of continuous output current, which is suitable for high-power applications.
• Low Dropout Voltage: The low dropout voltage allows for efficient operation even when the input voltage is very close to the output voltage, reducing power losses and improving overall system efficiency.
• Fixed Output Voltage: Delivers a stable 3.3V output, which is a common voltage requirement for many digital and analog circuits.
• Thermal Overload Protection: Built-in thermal overload protection automatically shuts down the regulator to prevent damage from overheating.
• Short Circuit Protection: Offers robust short circuit protection to enhance the longevity and reliability of the regulator and the circuits it powers.
• Adjustable Output: While the device has a fixed voltage version, it also offers the flexibility to adjust the output voltage with external resistors for specific application needs.

Applications

The MIC29301-3.3WU is versatile and can be used in a wide range of applications, including:

• Power supplies for microcontrollers and digital systems
• Post-regulation for switching power supplies
• Battery-powered devices
• Peripheral power

Package and Quality

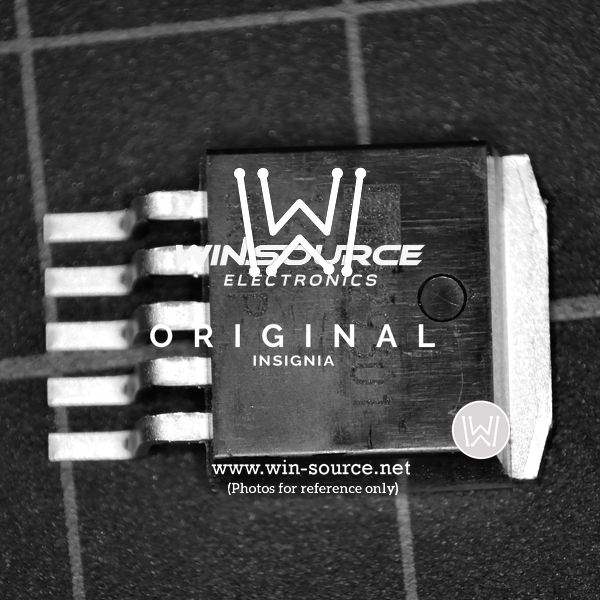

The regulator is available in a TO-263 (also known as D2PAK) package, which is suitable for surface mount technology (SMT) and provides good thermal performance for heat dissipation. Microchip Technology ensures high-quality standards, and the MIC29301-3.3WU is designed to meet the rigorous demands of industrial and commercial applications.

With its robust feature set and reliable performance, the MIC29301-3.3WU from Microchip Technology stands out as a solid choice for designers looking to implement a stable power solution in their electronic projects.
