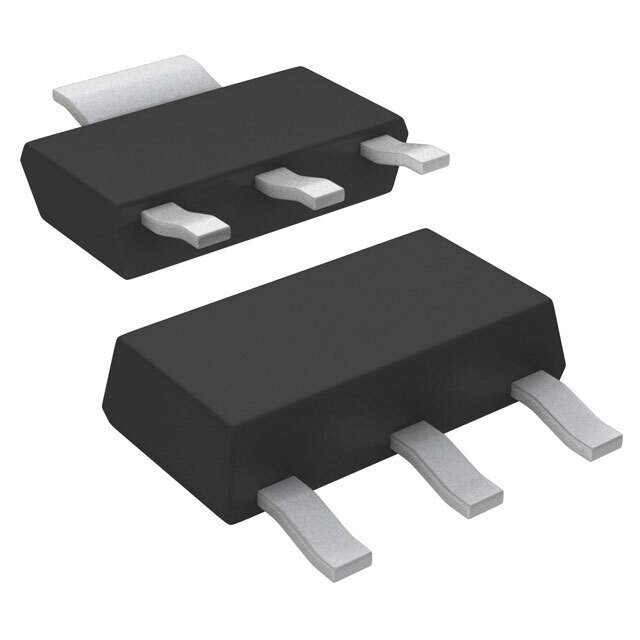

MIC2954-02WS

Part No MIC2954-02WS
Manufacturer Microchip Technology
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 5V 0.25A SOT223
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Microchip Technology
Packaging Tube/Rail
Status Active
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 30V
Nominal Output Voltage (Min/Fixed) 5V
Dropout Voltage-Max 0.6V @ 250mA
Output Current 250mA
Operating Supply Current 300μA to 12mA
Control Protection Features Load Dump, Over Current, Over Temperature, Reverse Polarity, UV POR
Temperature Range - Operating -40°C to 125°C
Regulator Topology Positive Fixed
Output Voltage 5V
Voltage - Dropout (Typical) 0.375V @ 250mA
Mounting SMD (SMT)
Case / Package SOT-223
Win Source Part Number 083876-MIC2954-02WS
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MIC2954-02WS CAD Model

Description

Product Overview: MIC2954-02WS from Microchip Technology

The MIC2954-02WS is a high-quality, adjustable and fixed voltage regulator designed and produced by Microchip Technology, a leading provider of microcontroller and analog semiconductors. This regulator is part of the MIC2950/2951 series, known for their high performance and reliability in a wide range of applications.

Key Features

  • Voltage Regulation: The MIC2954-02WS offers an adjustable output voltage range from 1.24V up to 29V, which allows for a high degree of flexibility in various circuit designs. Additionally, it provides fixed voltage options to cater to standard voltage requirements.
  • Current Capacity: It is capable of delivering up to 150mA of output current, making it suitable for low-power applications that require a stable power supply.
  • Low Dropout Voltage: The low dropout voltage feature ensures efficient operation, even when the input voltage is very close to the output voltage, thus preserving battery life in portable devices.
  • Thermal Overload Protection: The built-in thermal overload protection safeguards the device from damage caused by excessive power dissipation or high operating temperatures.
  • Short Circuit Protection: The MIC2954-02WS is equipped with short circuit protection, which prevents the regulator and the connected load from potential damage due to short circuits.

Applications

The versatility of the MIC2954-02WS makes it an ideal choice for a broad range of applications. It is commonly used in:

  • Battery-powered devices
  • Portable electronics
  • Reference voltage sources
  • Peripheral power supplies

Package and Quality

The MIC2954-02WS comes in a TO-92 package, which is widely used for transistors and regulators due to its small footprint and ease of mounting on printed circuit boards. Microchip Technology's commitment to quality ensures that each device meets high standards for performance and reliability, making the MIC2954-02WS a trusted component for designers and engineers in various industries.

To learn more about the MIC2954-02WS and how it can be integrated into your designs, visit the Microchip Technology website for detailed specifications and application notes.
