Products specifications

Manufacturer Microchip Technology
Packaging Reel
Part Status Obsolete (End Of Life)
Output Configuration Positive
Output Type Adjustable
Number of Regulators 1
Maximum Input Voltage 6V
Voltage - Output (Min/Fixed) 1.24V
Maximum Output Voltage 5.5V
Maximum Dropout Voltage 0.5V at 1.5A
Current - Output 1.5A
Control Features Enable
Protection Features Over Current, Over Temperature, Reverse Polarity
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Manufacturer Package SPak-5 (5 leads + Tab)
Supplier Device Package S-PAK-5
Part Number Series MIC37152
Manufacturer Pack Quantity 750
MSL Level 3 (168 Hours)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803868-MIC37152BR TR
Ultra Librarian 3D Model Ultra Librarian MIC37152BR TR CAD Model

Description

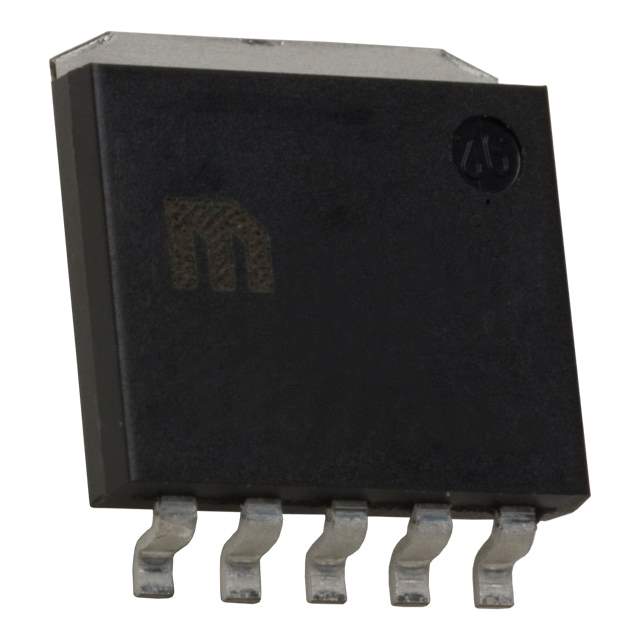

Product Overview: MIC37152BR TR from Microchip Technology

The MIC37152BR TR is a high-performance, low-dropout voltage regulator from Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This regulator is designed to deliver a continuous output current of up to 1.5A with an input voltage range of 2.25V to 6V, making it an ideal choice for a wide range of applications that require a stable and reliable power supply.

Key Features

  • High Output Current: Capable of delivering up to 1.5A of continuous output current, this voltage regulator can power demanding circuits.
  • Low Dropout Voltage: With a low dropout voltage, the MIC37152BR TR ensures efficient operation even when the input voltage is close to the output voltage, maximizing battery life in portable applications.
  • Adjustable Output Voltage: The output voltage can be adjusted from 1.24V to 5.5V using external resistors, providing flexibility for various design requirements.
  • Thermal and Overcurrent Protection: Built-in thermal shutdown and current limit features protect the device and the load from damage due to overheating and overcurrent conditions.
  • Stable with Ceramic Capacitors: This regulator is stable with low-ESR ceramic output capacitors, which reduces the size and cost of the power supply design.
  • Fast Transient Response: The MIC37152BR TR offers a fast transient response, which is essential for maintaining voltage stability during sudden changes in load.

Applications

The MIC37152BR TR is suitable for a variety of applications, including:

  • Portable Devices
  • Microprocessor/Microcontroller Power Supplies
  • Memory and Logic Circuitry
  • PC Add-In Cards

With its robust features and reliable performance, the MIC37152BR TR from Microchip Technology is an excellent choice for designers looking for a versatile and efficient voltage regulator solution. Its compatibility with ceramic capacitors and adjustable output voltage make it a flexible option that can be tailored to meet the specific needs of various electronic applications.
