Microchip Technology MIC4605-1YMT-TR Half-Bridge MOSFET Driver

The MIC4605-1YMT-TR from Microchip Technology is a sophisticated half-bridge MOSFET driver designed for high-performance applications where efficient power management is crucial. This driver is particularly suitable for driving both the high-side and low-side N-channel MOSFETs in a motor control circuit, making it an ideal choice for a wide range of applications including industrial automation, automotive systems, and consumer electronics.

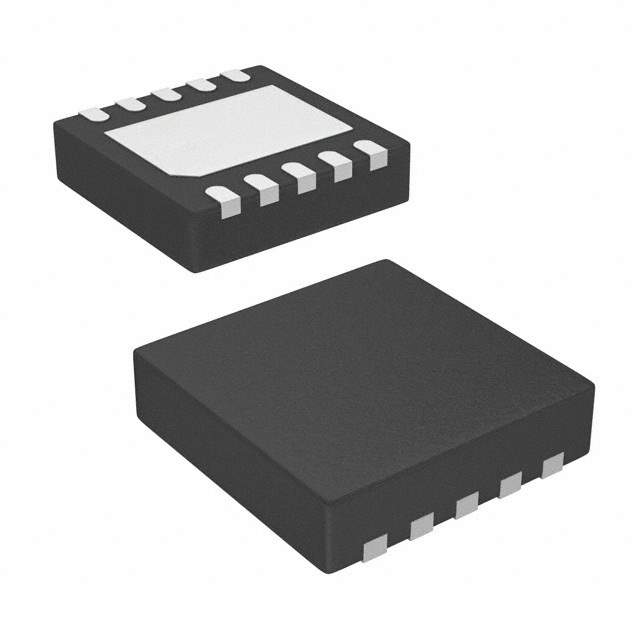

This driver is part of the MIC4605 series and comes in a compact 10-MLF® (3x3mm) package. It is provided in tape and reel form for ease of manufacturing and assembly processes, with the TR suffix indicating tape and reel packaging. The MIC4605-1YMT-TR is designed to operate over a wide supply voltage range from 4.5V to 18V, accommodating various system requirements.

One of the standout features of the MIC4605-1YMT-TR is its Adaptive-Dead-Time and Shoot-Through Protection, which ensures optimal dead-time selection and safeguards the MOSFETs from potential damage caused by shoot-through currents. Additionally, the driver boasts a fast 35ns propagation delay and 20ns driver rise and fall times, which contribute to improved overall system efficiency and faster response times.

The MIC4605-1YMT-TR also includes an Under-Voltage Lockout (UVLO) feature, which prevents the driver from operating if the supply voltage drops below a certain threshold, thus protecting the system from unstable operation. Furthermore, the device features Thermal Shutdown protection, adding an extra layer of security against overheating and potential thermal damage.

For design flexibility, the MIC4605-1YMT-TR offers a choice of two PWM input modes: Independent High-Side and Low-Side PWM inputs, or a single PWM input with Tri-State function. This enables designers to select the most appropriate configuration for their specific application.

In summary, the MIC4605-1YMT-TR from Microchip Technology is a robust and versatile half-bridge MOSFET driver that offers a combination of protection features, fast switching speeds, and design flexibility, making it a prime choice for engineers looking to optimize their power management solutions.
