Product Overview: MIC5313-F6YMT-TR from Microchip Technology

The MIC5313-F6YMT-TR is a high-performance, dual low-dropout linear regulator (LDO) integrated circuit designed and manufactured by Microchip Technology. This advanced power management solution is engineered to deliver stable and reliable power supply for a wide range of applications, making it an ideal choice for designers looking to enhance their system's power efficiency and performance.

Key Features

• Output Voltage: The device provides two regulated outputs, each capable of delivering up to 300mA of continuous current, with adjustable output voltages from 1.2V to 3.6V, which can be set via external resistors.
• High Accuracy: The MIC5313 offers excellent regulation, boasting an accuracy of ±2% over temperature, line, and load conditions, ensuring a consistent power supply for sensitive electronic components.
• Low Dropout Voltage: It features a low dropout voltage, typically 165mV at 300mA, which helps to maximize battery life in portable devices by allowing operation closer to the battery's end-of-life voltage.
• Thermal Shutdown and Current Limit: The device includes built-in thermal shutdown and current limit protection features to safeguard the IC and the downstream components from damage caused by over-current or excessive heat conditions.
• Power Save Mode: An innovative power save mode enables the LDO to maintain high efficiency even at low output currents, making it suitable for battery-powered applications where power conservation is critical.

Applications

The MIC5313-F6YMT-TR is versatile and can be used in a variety of applications, including:

• Mobile Phones
• Portable Media Players
• Wireless LAN Devices
• GPS Receivers
• Digital Cameras
• Other Battery-Powered Devices

Package and Availability

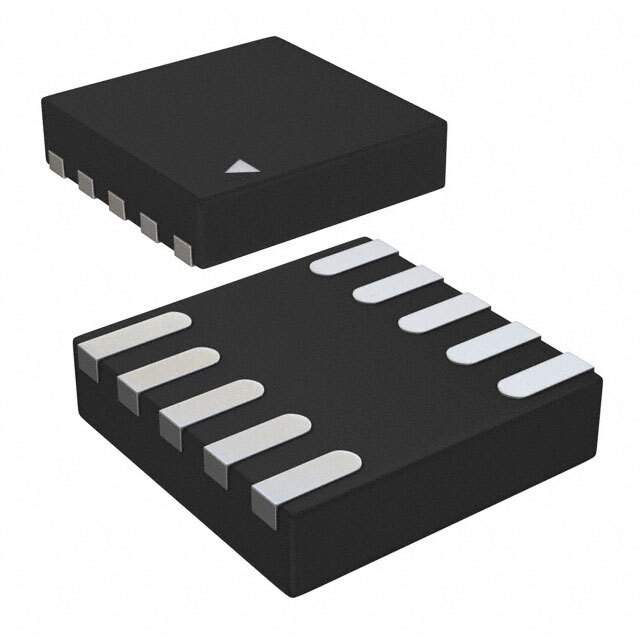

The device comes in a compact, lead-free 10-pin 2x2mm thin DFN package, with a thermal pad that provides excellent heat dissipation. The MIC5313-F6YMT-TR is available in tape and reel packaging, ensuring it is ready for automated assembly processes, and is RoHS compliant, meeting the environmental standards of today's electronic industry.

With its robust feature set, the MIC5313-F6YMT-TR from Microchip Technology stands out as a reliable and efficient power management solution for designers looking to optimize their products' performance and extend battery life.
