Product Overview

The MIC94305YCS-TR is a high-performance, adjustable output, low-dropout regulator (LDO) from Microchip Technology. Designed for advanced power management, this LDO offers a compact solution for applications that require a low voltage supply from a higher voltage input. It is well-suited for battery-operated devices, portable electronics, and other systems where energy efficiency is paramount.

Key Features

• Adjustable Output: The MIC94305YCS-TR provides an adjustable output voltage that can be tailored to the needs of the specific application, offering flexibility and precision in power supply design.
• Low Dropout: With its low dropout performance, the MIC94305YCS-TR maintains regulation with minimal difference between the input and output voltages, which is essential for maximizing battery life in portable applications.
• High Accuracy: This LDO features high accuracy in output voltage regulation, ensuring reliable and consistent power supply to sensitive electronic components.
• Thermal Shutdown Protection: The device includes thermal shutdown protection to safeguard against overheating, enhancing the reliability and longevity of both the regulator and the overall system.
• Current Limit Protection: Integrated current limit protection prevents damage to the device from overcurrent conditions, contributing to the overall safety of the application.

Applications

The MIC94305YCS-TR is versatile and can be used in a wide range of applications, including:

• Mobile Phones and PDAs
• Portable Media Players
• Wireless LAN Devices
• GPS Receivers
• Portable Instruments

Product Specifications

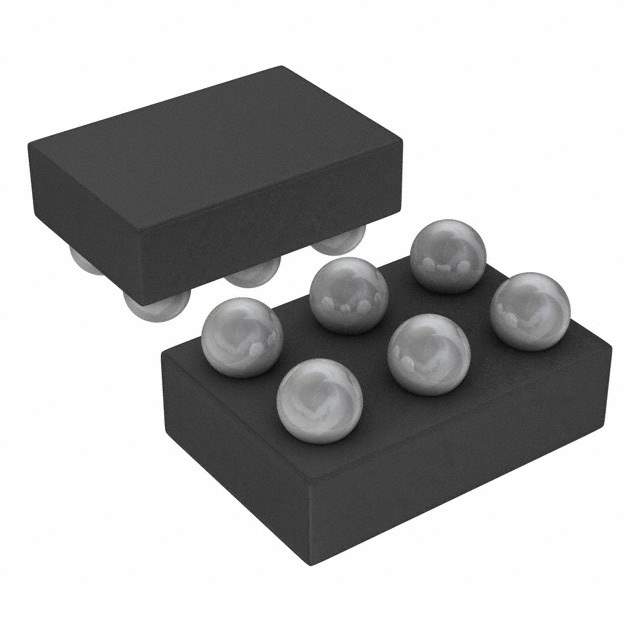

The MIC94305YCS-TR is offered in a compact, surface-mount package, making it ideal for space-constrained applications. It operates over a wide input voltage range and offers excellent transient response, helping to maintain stable output voltage during rapid load changes. The device is also characterized by low quiescent current, contributing to minimal power loss during operation and extending the battery life of portable devices.

Ordering Information

The product is available in tape and reel format, denoted by the "-TR" suffix, facilitating automated assembly processes for high-volume manufacturing. Microchip Technology's commitment to quality ensures that each MIC94305YCS-TR LDO regulator meets stringent performance criteria and is backed by the company's comprehensive technical support.
