The MIC94310-JYMT-T5 is a state-of-the-art load switch from Microchip Technology, designed to deliver high performance and reliability for power management applications. This compact, high-efficiency device is an ideal solution for systems that require power distribution and control.

Key Features

• Low On-Resistance: The MIC94310-JYMT-T5 features a low on-resistance (RON) that ensures minimal voltage drop and power loss when the switch is on, enhancing overall system efficiency.
• High-Speed Switching: With its ability to switch on and off rapidly, this load switch can effectively manage power to various subsystems, reducing standby power consumption.
• Built-in Level Shifter: The device includes a built-in level shifter, making it compatible with a wide range of control logic levels. This allows for easy integration into various circuit designs without the need for additional components.
• Current Limit Protection: To safeguard connected components, the MIC94310-JYMT-T5 incorporates current limit protection, preventing damage from over-current conditions.
• Thermal Shutdown: An integrated thermal shutdown feature ensures the device operates within safe temperature ranges, offering additional protection against overheating.

Applications

The versatile MIC94310-JYMT-T5 is suitable for a wide array of applications, including but not limited to:

• Smartphones and Tablets
• Portable Media Players
• Wireless and Networking Devices
• Power Management Systems

Technical Specifications

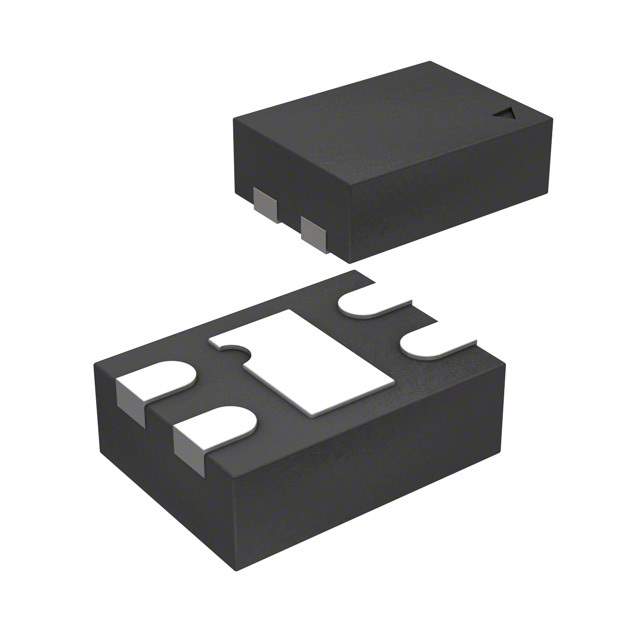

The device comes in an ultra-small 1.2mm x 1.6mm thin DFN package, which is perfect for space-constrained applications. It operates over a voltage range of 1.7V to 5.5V, making it versatile for various electronic devices. Additionally, the MIC94310-JYMT-T5 has a junction temperature range of -40°C to +125°C, allowing it to function reliably in a wide range of environmental conditions.

For designers and engineers looking for a reliable load switch to manage power in their next project, the MIC94310-JYMT-T5 from Microchip Technology offers a blend of performance, efficiency, and protection features that make it an excellent choice.
