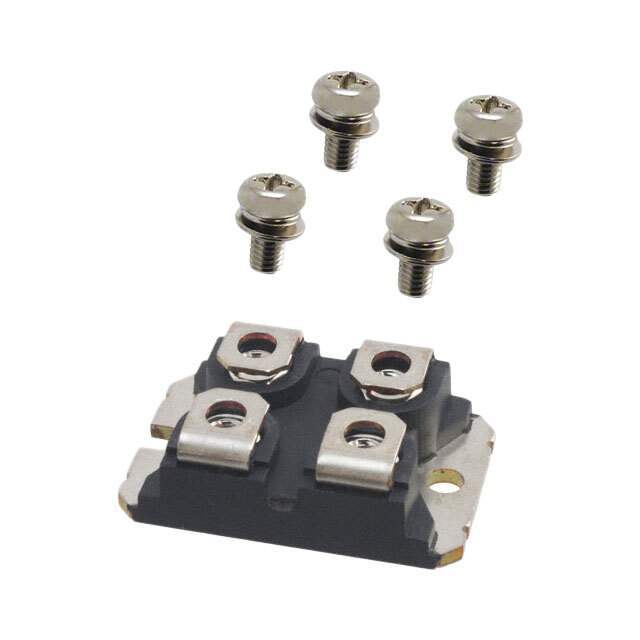

Microchip Technology MSC130SM120JCU3 Silicon Carbide Power Module

The MSC130SM120JCU3 is a state-of-the-art silicon carbide (SiC) power module from Microchip Technology, designed to deliver high-efficiency and high-performance solutions for power conversion systems. This robust module is engineered to handle a wide range of applications, including electric vehicles, industrial motor drives, solar inverters, and power supply units. Its SiC technology provides superior switching performance and thermal conductivity compared to traditional silicon-based modules.

Key Features:

• High-Efficiency SiC MOSFETs: The module incorporates advanced SiC MOSFETs that offer low on-resistance and reduced switching losses, enabling higher efficiency in power conversion.
• 1200V Rated Voltage: With a high breakdown voltage of 1200V, the MSC130SM120JCU3 is suitable for applications that demand high voltage operation, providing a reliable solution for high power systems.
• High-Temperature Operation: The module is capable of operating at high temperatures, which reduces the need for extensive cooling systems and allows for more compact designs.
• Low Inductance Design: The optimized package design offers low stray inductance, which minimizes switching losses and improves overall system performance.
• Durable Construction: The robust package is designed to withstand harsh environments and ensures a long operational lifespan, even under extreme conditions.
• Easy Integration: The MSC130SM120JCU3 comes in a standard package that is compatible with existing systems, making it easy to upgrade to SiC technology without significant redesigns.

Applications:

• Electric Vehicle (EV) Traction Inverters
• Industrial Motor Drives
• Renewable Energy Systems, such as Solar Inverters
• Uninterruptible Power Supplies (UPS)
• High-Power Switching Applications

With its advanced features and robust design, the MSC130SM120JCU3 from Microchip Technology is an excellent choice for designers looking to improve system efficiency, reliability, and performance. The integration of SiC technology in this power module represents a significant step forward in power electronics, offering a combination of high power density, efficiency, and thermal performance that is hard to match with traditional silicon solutions.
