The EPM3256AFC256-10N is a MAX 3000A family Complex Programmable Logic Device (CPLD) from Intel (formerly Altera). It is designed for general-purpose logic integration, offering a balance of speed, density, and ease of use. The '10N' designates a speed grade within the series, indicating a specific propagation delay characteristic.

Applications:

• Address decoding: Commonly used for decoding memory addresses in embedded systems.
• Glue logic: Implemented to connect different components on a circuit board.
• I/O expansion: Utilized to increase the number of available input/output pins.
• Motor control: Employed in basic motor control circuits for appliances and small machinery.
• Peripheral interfacing: Integrated in systems to manage communication with peripherals like displays and sensors.

Features:

• High-speed performance: Offers fast propagation delays for time-critical applications.
• In-system programmability (ISP): Supports in-system programmability, enabling convenient design iteration and updates.
• Flexible I/O architecture: Provides a configurable I/O structure to adapt to different system requirements.
• Low power consumption: Consumes low power, making it suitable for portable and energy-efficient designs.
• Global routing resources: Features global routing resources to ensure efficient signal distribution.

Benefits:

• Simplified design process: Eases the design process with user-friendly development tools and comprehensive documentation.
• Reduced board space: Reduces board space by integrating multiple logic functions into a single device.
• Faster time-to-market: Accelerates time-to-market through rapid prototyping and design iteration.
• Lower system cost: Lowers system cost by minimizing the need for discrete logic components.
• Improved system reliability: Enhances system reliability with robust performance and error detection features.

Additional Details:

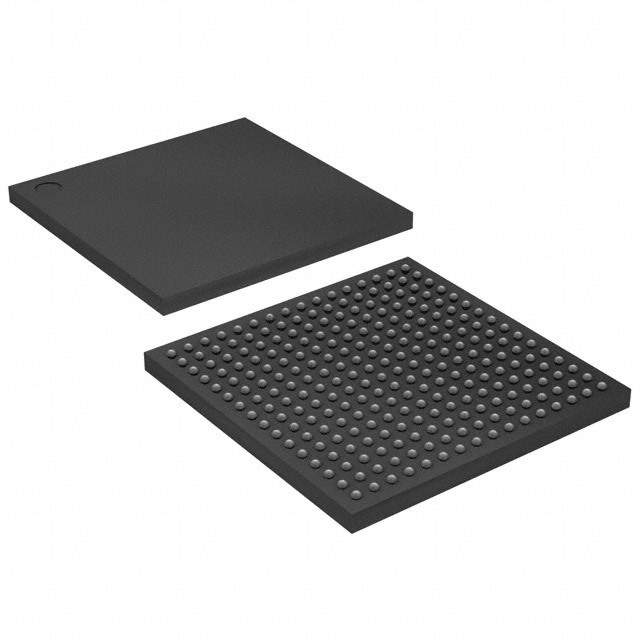

The EPM3256AFC256-10N comes in a 256-pin Fine-pitch Ball Grid Array (FBGA) package. It operates at a specific voltage range, typically 3.3V or 5V, and features an architecture comprised of multiple macrocells interconnected by a programmable interconnect array. Each macrocell consists of logic gates, flip-flops, and product term sharing. The device is configured using non-volatile memory, which retains its configuration even when power is removed. Detailed timing specifications, power characteristics, and configuration procedures can be found in the Intel MAX 3000A family documentation. Programming can be performed via JTAG interface. The architecture allows for efficient implementation of both combinational and sequential logic circuits.
