Microchip Technology's PIC16C771/JW

The PIC16C771/JW from Microchip Technology is a high-performance, CMOS, fully-static, 8-bit microcontroller packed with a variety of features that make it an ideal choice for a wide range of applications in the automotive, industrial, and consumer markets. It is part of the PIC family of microcontrollers, renowned for their ease of use, low power consumption, and reliable performance.

Core Features

• Processor: The device is built around a powerful PIC microcontroller core with a maximum clock speed of 20 MHz, providing the computational power needed for complex tasks and algorithms.
• Memory: It includes 14 KB of on-chip program memory (EPROM) and 368 bytes of RAM, which allows for robust application development without the need for external memory components.
• I/O Ports: The PIC16C771/JW offers 33 I/O pins, giving developers ample flexibility to interface with sensors, actuators, and other peripherals.
• Analog-to-Digital Converter (ADC): An integrated 8-channel, 8-bit ADC enables the microcontroller to process analog signals, which is essential for sensor-based applications.

Advanced Peripherals

• PWM Modules: It comes with two Capture/Compare/PWM (CCP) modules, which are crucial for precise control in motor and lighting applications.
• Timers: The microcontroller includes three timers (one 8-bit and two 16-bit), providing versatility in timing and counting operations.
• Serial Communication: The device features serial communication capabilities through its synchronous serial port (SSP) with SPI and I2C support, and a Universal Synchronous Asynchronous Receiver Transmitter (USART), making it suitable for complex communication protocols.

Robust Design

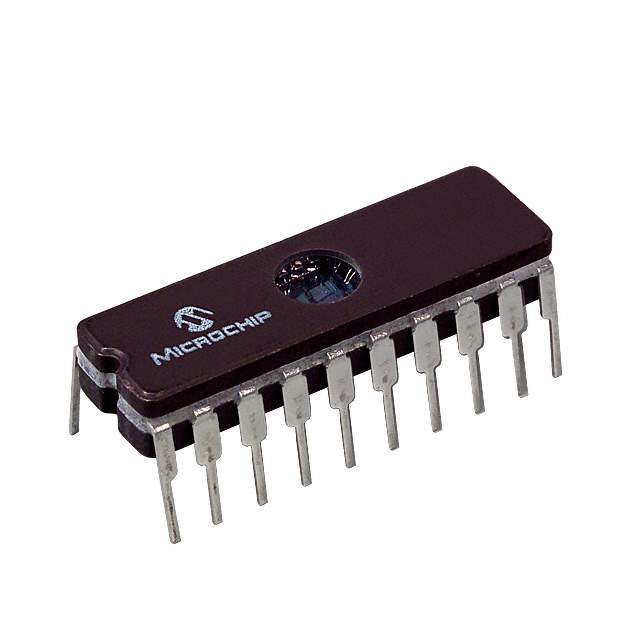

The PIC16C771/JW is encapsulated in a windowed ceramic package that not only protects the chip but also allows for UV erasure of the EPROM, enabling reuse and flexibility during the development phase. Its operating voltage range of 2.5V to 5.5V and extended temperature range ensure reliable operation in challenging environments.

Applications

This microcontroller is designed to meet the demands of sophisticated embedded systems. Applications include but are not limited to automotive engine control, industrial automation systems, smart sensors, battery management, and consumer electronics requiring complex logic and interfacing capabilities.

With its robust set of features and Microchip's reputation for quality, the PIC16C771/JW is a versatile and reliable choice for designers looking to create advanced electronic systems with a single-chip solution.
