Product Overview: PIC16LF1559T-I/ML

The PIC16LF1559T-I/ML is a powerful 8-bit microcontroller from Microchip Technology, designed to provide an optimal balance of performance, power efficiency, and versatility for a wide range of embedded applications. This microcontroller is part of the PIC16F family, which is renowned for its ease of use and robust integration of features.

Key Features

• CPU: The device is based on Microchip’s advanced RISC architecture, offering a maximum CPU speed of 32MHz. This provides the computational power needed for complex tasks while maintaining power efficiency.
• Memory: It comes equipped with 3.5KB of flash program memory and 256 bytes of RAM, ensuring ample space for application code and data storage.
• I/O Pins: The microcontroller features 18 I/O pins, which includes multiple analog inputs and digital I/Os, allowing for versatile interfacing with peripheral devices.
• ADC: An integrated 10-bit Analog-to-Digital Converter (ADC) allows for precise measurement of analog signals, which is critical for sensor interfacing and data acquisition tasks.
• Timers: Multiple timers including 8-bit and 16-bit timers, as well as a Watchdog Timer, provide timing and control capabilities for a variety of applications.
• Communication Peripherals: The PIC16LF1559T-I/ML supports serial communication with its integrated USART, SPI, and I2C modules, facilitating easy data exchange with other microcontrollers, sensors, and devices.
• Operating Voltage: It operates at a low voltage range of 1.8V to 3.6V, making it suitable for battery-powered and portable applications.
• Temperature Range: The device is robust and designed to operate within an extended temperature range of -40°C to +125°C.

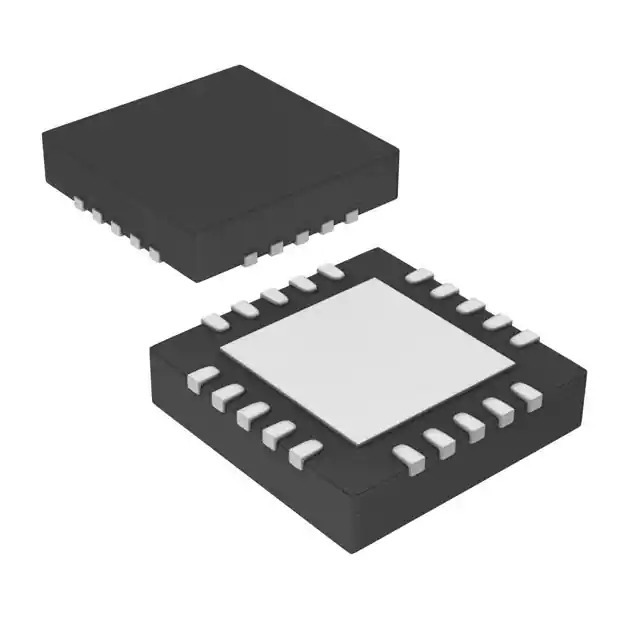

• Package: It is available in a 20-pin QFN (Quad Flat No-lead) package, which is ideal for space-constrained applications.

Applications

The PIC16LF1559T-I/ML is a versatile microcontroller that can be used in a variety of applications, including industrial control systems, automotive electronics, consumer electronics, and Internet of Things (IoT) devices. Its low power consumption and rich set of integrated peripherals make it an excellent choice for designers looking to create sophisticated and power-efficient embedded systems.

Manufacturer Support

Microchip Technology provides extensive support for the PIC16LF1559T-I/ML through their MPLAB® X Integrated Development Environment (IDE) and MPLAB XC8 compiler, making development and debugging processes streamlined and efficient. Additionally, a wide range of development boards and software libraries are available to accelerate the development cycle.
