Products specifications

Win Source Part Number WS1169160-PIC18F86K22-E/PT
Win Source Part Number Cross
Manufacturer Microchip Technology
Category Integrated Circuits (ICs) Embedded Microcontrollers
Series PIC® XLP™ 18K
Package Tray
Product Status Active
Core Processor PIC
Core Size 8-Bit
Speed 64MHz
Connectivity EBI/EMI, I²C, LINbus, SPI, UART/USART
Ultra Librarian 3D Model Ultra Librarian PIC18F86K22-E/PT CAD Model

Description

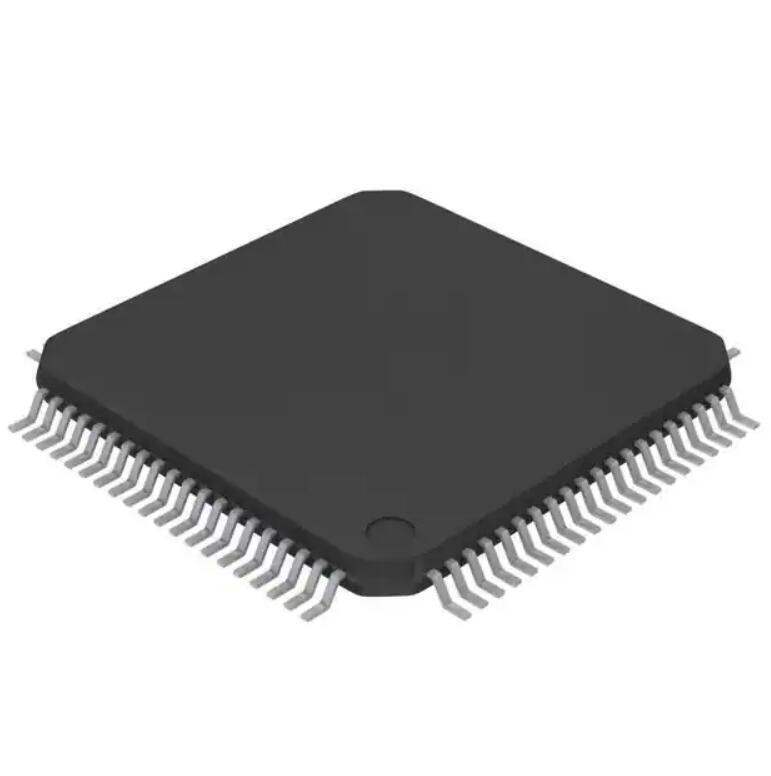

Microchip Technology PIC18F86K22-E/PT Microcontroller

The PIC18F86K22-E/PT is a high-performance microcontroller unit (MCU) from Microchip Technology, renowned for its versatility and efficiency in a wide range of embedded applications. This MCU is part of the PIC18F K22 family, which is well-regarded for its advanced features and capabilities in the realm of low-power, high-speed computing.

At the heart of the PIC18F86K22-E/PT is a powerful 8-bit processor that can operate at a maximum frequency of 64 MHz. This is thanks to its enhanced Mid-range core with 16-level deep hardware stack and multiple internal and external interrupts. Its high level of integration allows designers to implement complex functions and algorithms necessary for modern embedded systems.

With 64 KB of flash memory, 3,936 bytes of RAM, and 1 KB of EEPROM, this MCU offers ample space for application code and data storage, which is essential for applications that require frequent updates or data logging. The flash memory also provides self-read/write capabilities, making it possible to update firmware on-the-fly, a critical feature for future-proofing products in the field.

The PIC18F86K22-E/PT supports a range of peripherals that enhance its functionality. These include:
- A 12-bit analog-to-digital converter (ADC) with up to 28 channels, providing precise sensor signal acquisition.
- Three comparators and a Charge Time Measurement Unit (CTMU) for touch sensing or precise timing measurements.
- Two Enhanced Capture/Compare/PWM (ECCP) modules for advanced motor control and other PWM applications.
- Serial communication interfaces such as SPI, I2C, and EUSART for connectivity with other microcontrollers, sensors, and modules.

Designed for operation in extreme environments, this MCU is available in a 64-pin TQFP package and can withstand temperatures ranging from -40°C to 125°C. It is also equipped with Power Management features like Power-on Reset (POR), Power-up Timer (PWRT), Oscillator Start-up Timer (OST), and Brown-out Reset (BOR) with software control options, ensuring reliable operation under varying power conditions.

The PIC18F86K22-E/PT is ideal for applications in automotive, industrial control, home appliances, medical devices, and consumer electronics. Its robust architecture and extensive feature set make it a smart choice for designers looking to balance power, performance, and cost in their embedded systems.
