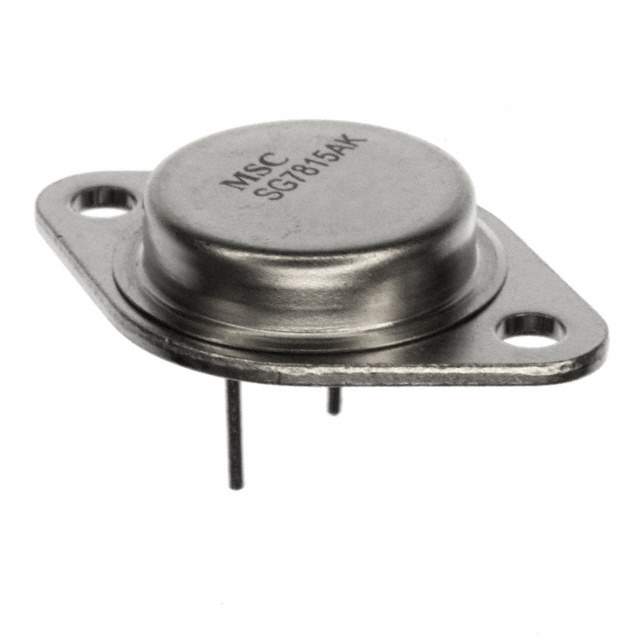

SG7815AK

Part No SG7815AK
Manufacturer Microchip Technology
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR 15V 1.5A TO204AD / Linear Voltage Regulator IC Positive Fixed 1 Output 1.5A TO-204AD (TO-3)
Datasheet
Sample
Rohs State Need to verify
ECAD Module ECAD

Shipping Information

Shipped from HK warehouse
Expected Shipping Date Ask for an estimation

Products specifications

Category Integrated Circuits (ICs)>PMIC - Voltage Regulators - Linear
Mfr Microchip Technology
Series Military, MIL-STD-883
Package Bulk
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 50V
Voltage - Output (Min/Fixed) 15V
Voltage Dropout (Max) 2.5V @ 500mA
Current - Output 1.5A
Current - Supply (Max) 7 mA
PSRR 60dB (120Hz)
Control Features Current Limit, Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -55°C ~ 125°C (TA)
Mounting Type Through Hole
Package / Case TO-204AA, TO-3
Supplier Device Package TO-204AD (TO-3)
Base Product Number SG7815
Standard Package 20
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1244945-SG7815AK
Fake Threat In the Open Market 84 pct.

Description

Microchip Technology's SG7815AK - A Robust Voltage Regulator

The SG7815AK from Microchip Technology is a highly reliable, fixed-voltage integrated circuit regulator designed to offer a consistent 15V output. This precision voltage regulator is part of Microchip's expansive range of power management solutions, catering to a diverse set of applications across various industries.

With its robust design, the SG7815AK ensures a stable voltage supply, which is crucial for sensitive electronic devices. It is capable of delivering up to 1A of output current, making it suitable for moderate power requirements. The device's thermal overload protection safeguards it from excessive temperature rise, while its short-circuit protection feature ensures that both the regulator and your electronic components remain safe in the event of a fault condition.

The SG7815AK comes in a TO-3 package, known for its high power dissipation capabilities. This package makes the regulator an excellent choice for high-reliability applications and environments with challenging thermal conditions. The metallic casing also provides superior durability and enhances the overall lifespan of the product.

One of the key advantages of the SG7815AK is its ease of implementation. The device requires minimal external components, which simplifies circuit design and helps reduce overall system costs. This makes it an ideal solution for designers looking to implement a straightforward and efficient power supply circuit without the need for complex peripheral components.

The versatility of the SG7815AK allows it to be used in a wide range of applications, including but not limited to consumer electronics, industrial control systems, and telecommunication devices. Its consistent performance and reliability make it a go-to choice for engineers and designers in need of a dependable power management solution.

In conclusion, Microchip Technology's SG7815AK voltage regulator is a testament to the company's commitment to providing high-quality, durable, and reliable electronic components. Whether you are working on a simple project or a sophisticated industrial system, the SG7815AK offers the performance and stability required to meet your voltage regulation needs.
