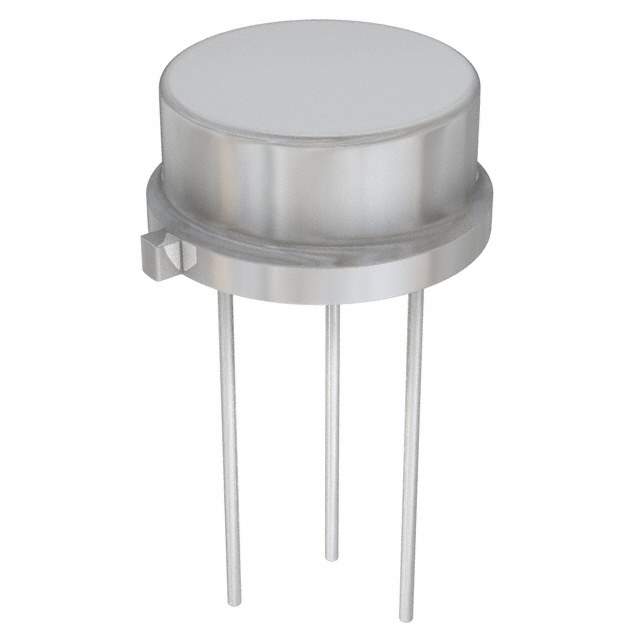

The SG7824T from Microchip Technology is a high-performance, precision integrated circuit that is part of Microchip's extensive range of power management solutions. This product is designed to cater to a wide variety of applications, ensuring reliability and efficiency in power supply systems.

Key Features

• Voltage Regulation: The SG7824T offers excellent voltage regulation capabilities, ensuring stable output even under varying load conditions.
• Thermal Protection: It includes built-in thermal protection that safeguards the device from overheating, thereby enhancing its longevity and reliability.
• Current Limiting: This feature prevents the device and the circuit from damage due to excessive current, making it a safe choice for sensitive applications.
• High Precision: The SG7824T is known for its high precision output, which is critical for applications requiring consistent power delivery.

Applications

The versatility of the SG7824T allows it to be utilized in a broad spectrum of applications, including:

• Switching power supplies
• Linear power supplies
• Motor control systems
• Battery chargers
• LED lighting
• Consumer electronics

Technical Specifications

The SG7824T is characterized by its robust technical specifications which include:

• Fixed Output Voltage: 24V
• Output Current: Up to 1.5A
• Package Type: TO-220
• Operating Temperature Range: 0°C to +125°C

With its combination of features and performance, the SG7824T is a reliable choice for designers and engineers looking to create efficient and durable power supply systems. Its compliance with industry standards and the reputation of Microchip Technology as a leading provider of power management solutions further assure users of its quality and performance.
