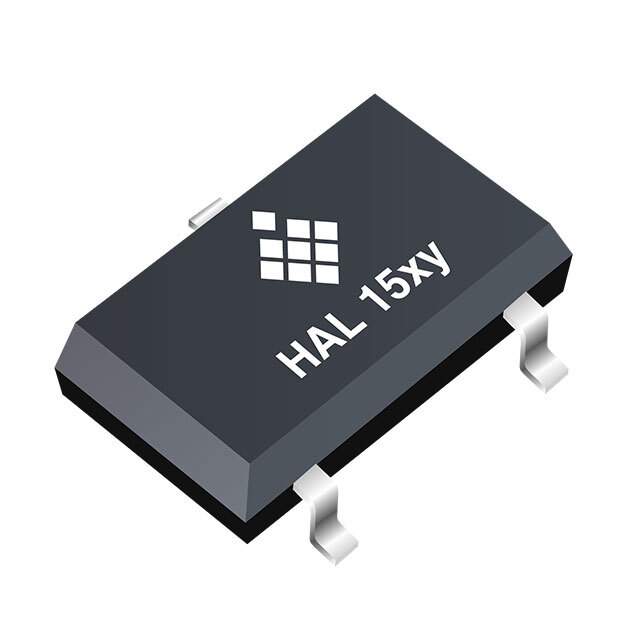

HAL1506SU-A

Part No HAL1506SU-A
Manufacturer Micronas GmbH
Catalog Magnetic Sensors - Switches (Solid State)
Description MAGNETIC SWITCH UNIPOLAR SOT23-3 / Digital Switch Unipolar Switch Open Drain Hall Effect SOT-23-3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors>Switches (Solid State)
Mfr Micronas GmbH
Series -
Package Tape & Reel
Function Unipolar Switch
Technology Hall Effect
Polarization South Pole
Sensing Range 18.9mT Trip, 17.3mT Release
Test Condition -
Voltage - Supply 2.7V ~ 24V
Current - Supply (Max) -
Current - Output (Max) -
Output Type Open Drain
Features -
Temperature Range - Operating -40°C ~ 70°C (TJ)
Mounting Type Surface Mount
Supplier Device Package SOT-23-3
Package / Case TO-236-3, SC-59, SOT-23-3
Base Product Number HAL1506
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 10,000 pcs
Win Source Part Number 1382201-HAL1506SU-A
Ultra Librarian 3D Model Ultra Librarian HAL1506SU-A CAD Model

Description

The HAL1506SU-A is a hall effect magnetic sensor switch with a sensing range of 18.9mT trip and 17.3mT release.

  • Voltage Range: 2.7V to 24V
  • Output Type: Open Drain
  • Mounting Type: Surface Mount
  • Package: Tape and Reel
  • Manufacturer: Micronas GmbH
  • Operating Temperature: -40°C to 70°C
  • REACH: Unaffected
  • Moisture Sensitivity Level: 1 (unlimited)
